Aansluitschema I/O-circuit

* Als de tekst moeilijk te lezen is, raadpleeg dan de CAD of de handleiding.

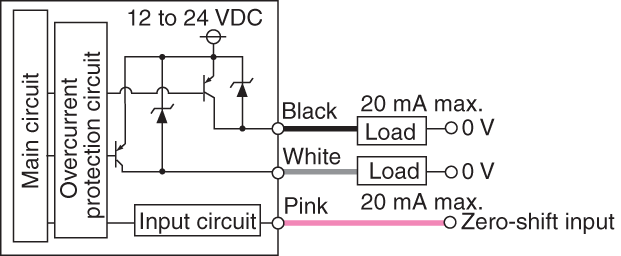

Schema I/O circuit (AP-V42AWP)

AP-V42AWP IO circuit

Zero-shift ingangscircuit (AP-V41AWP/V42AWP/C40WP)

AP-V41AWP IO circuit
