Afmetingen

* Als de tekst moeilijk te lezen is, raadpleeg dan de CAD of de handleiding.

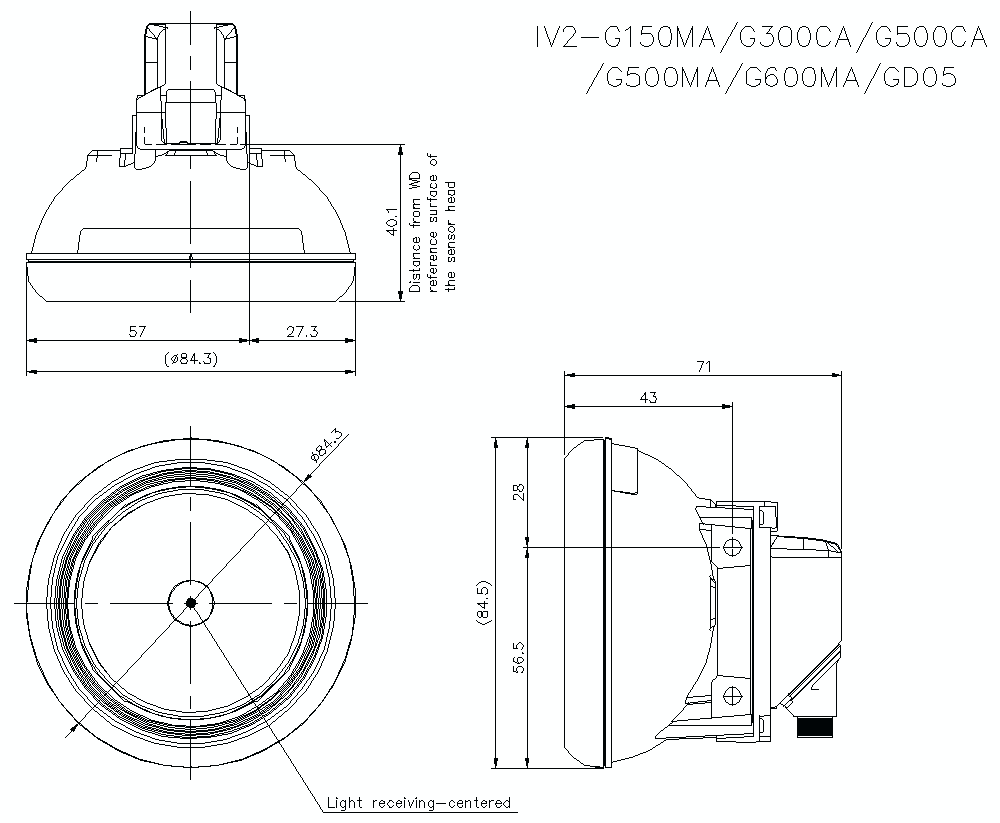

IV2-G150/G300/G500/G600/GD05 Dimension

IV2-G150/G300/G500/G600/GD05/OP-87908 Dimension

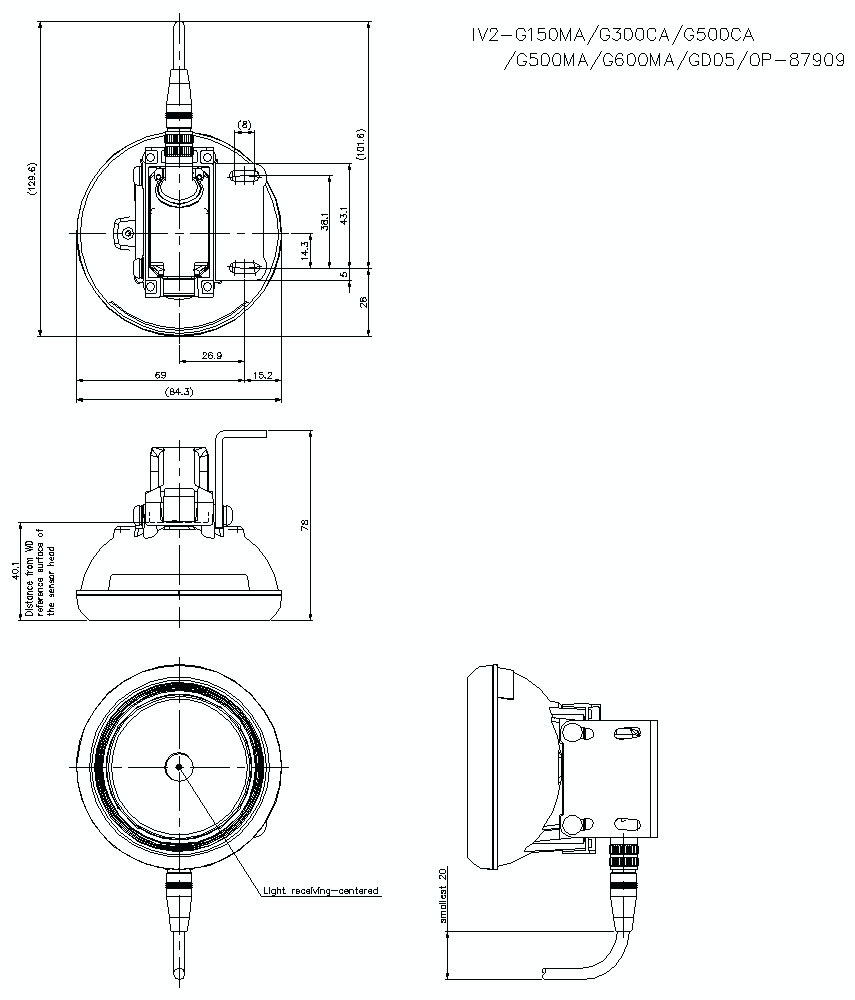

IV2-G150/G300/G500/G600/GD05/OP-87909 Dimension

IV2-G150/G300/G500/G600/GD05/OP-87910 Dimension

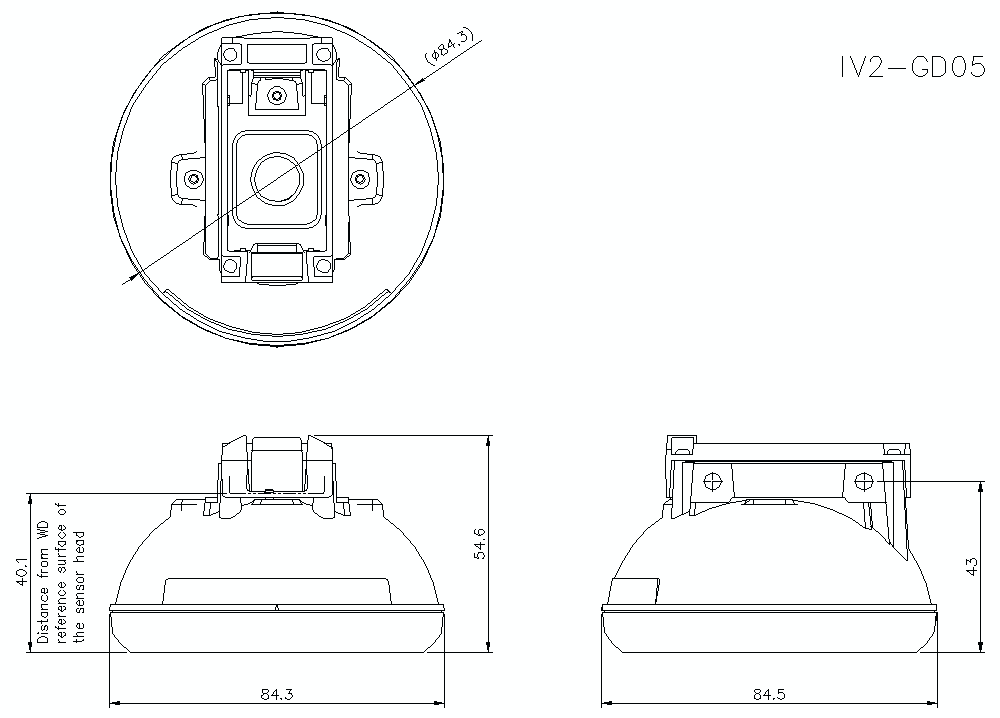

IV2-GD05 Dimension

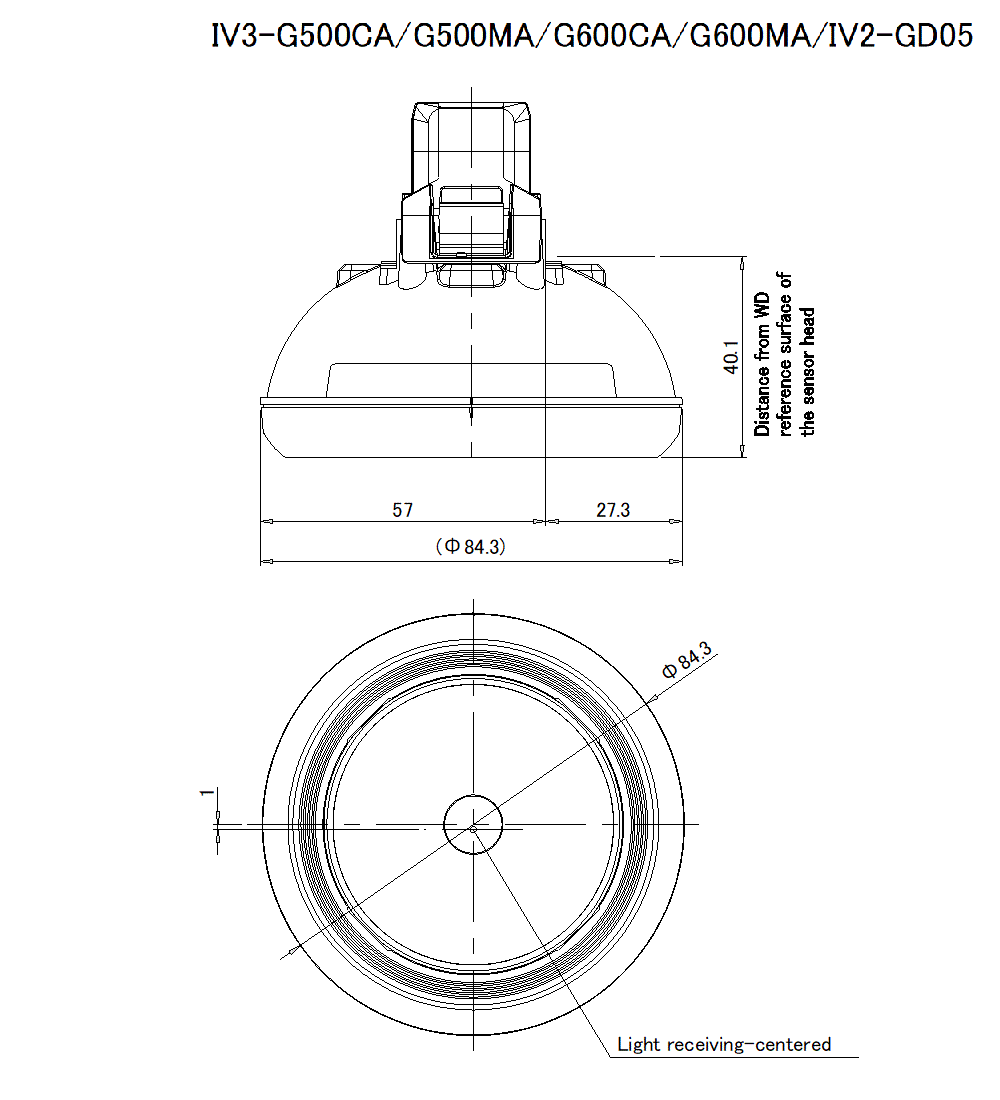

IV3-G/GD05 Dimension 01

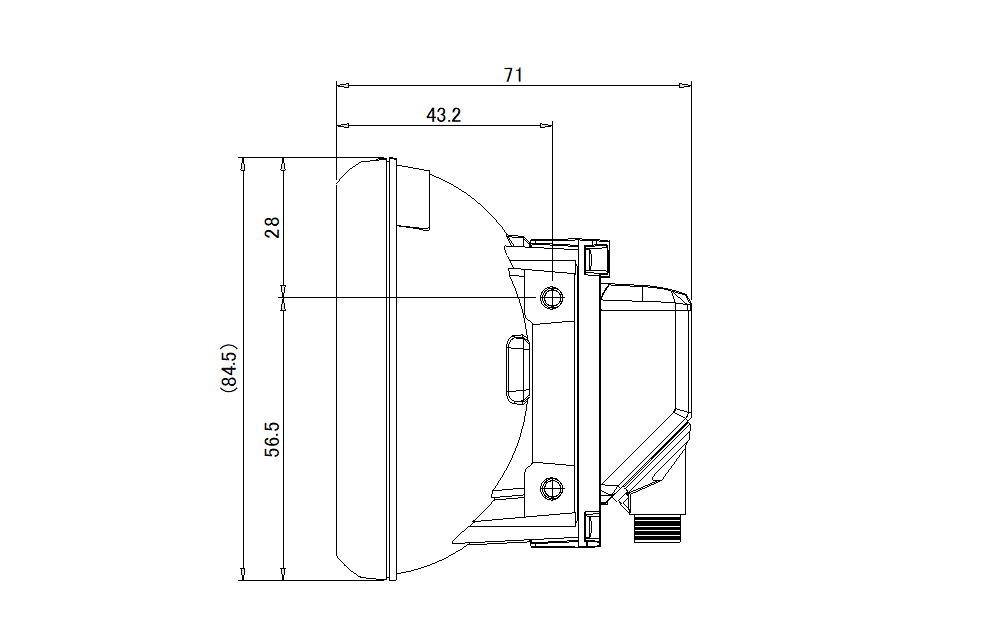

IV3-G/GD05 Dimension 02

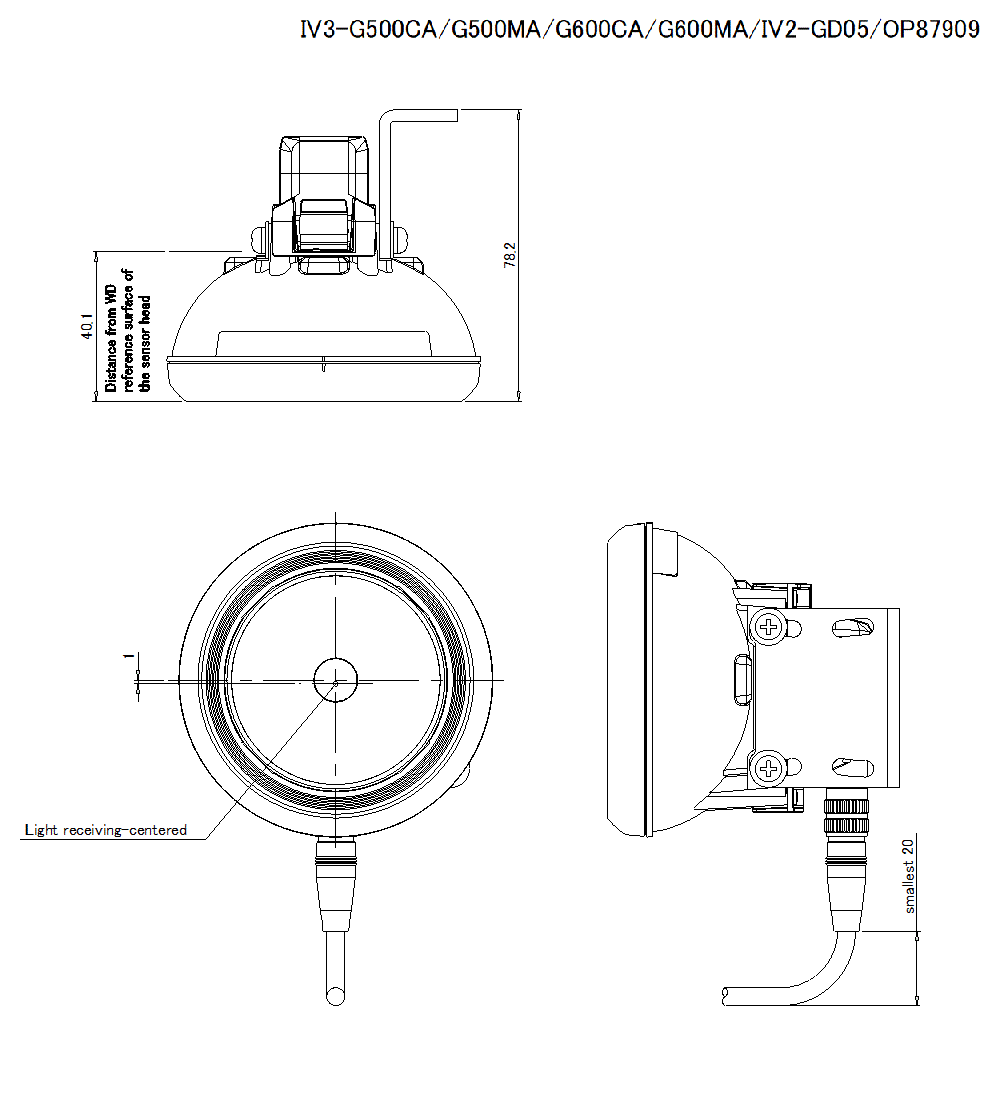

IV3-G/GD05/OP-87909 Dimension 01

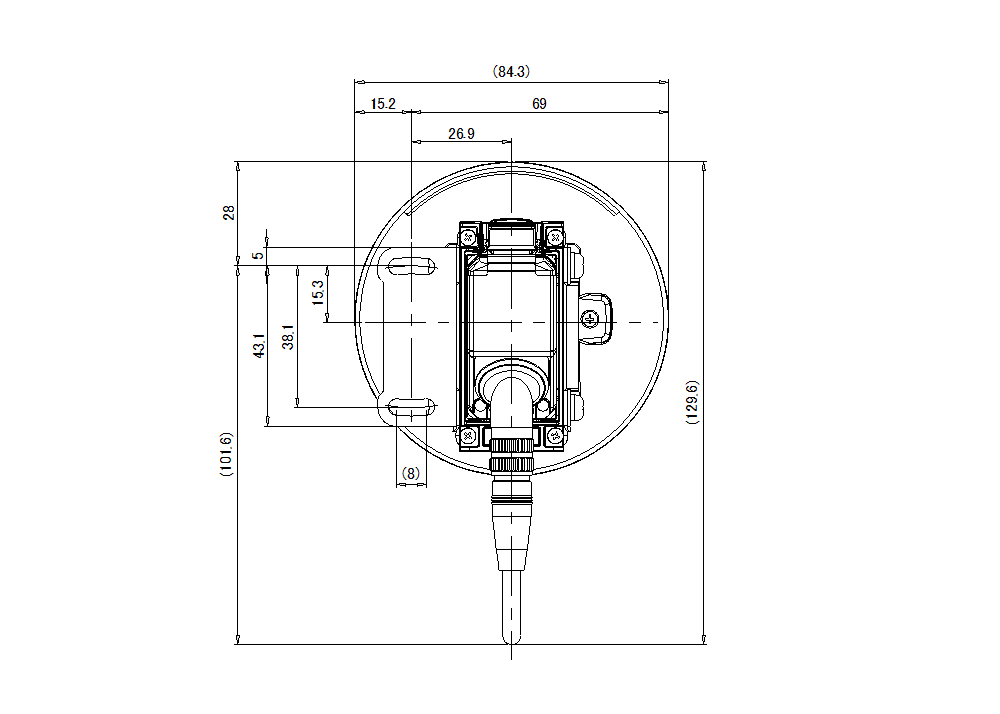

IV3-G/GD05/OP-87909 Dimension 02

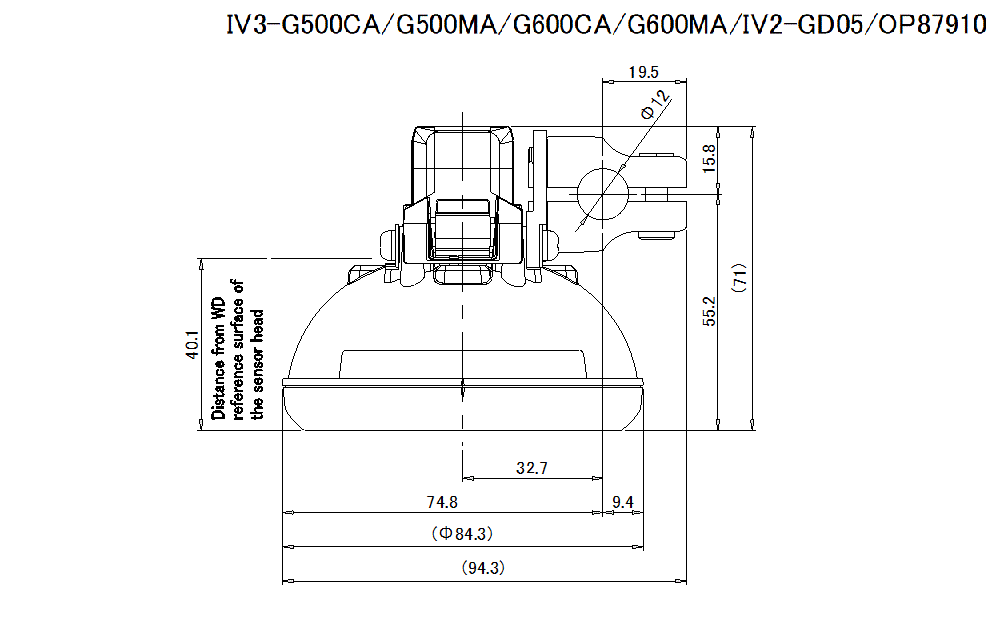

IV3-G/GD05/OP-87910 Dimension 01

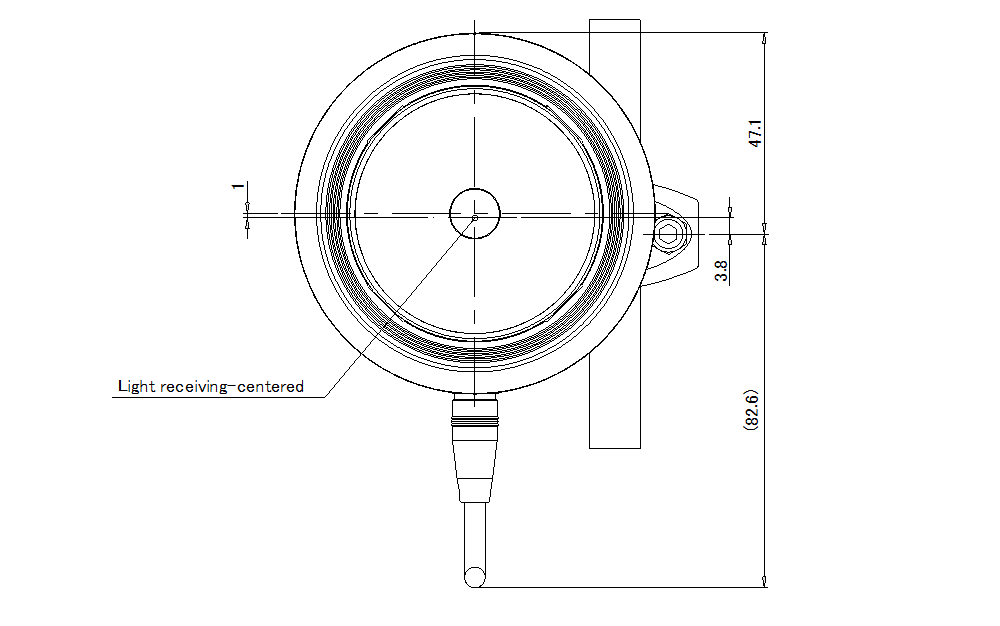

IV3-G/GD05/OP-87910 Dimension 02

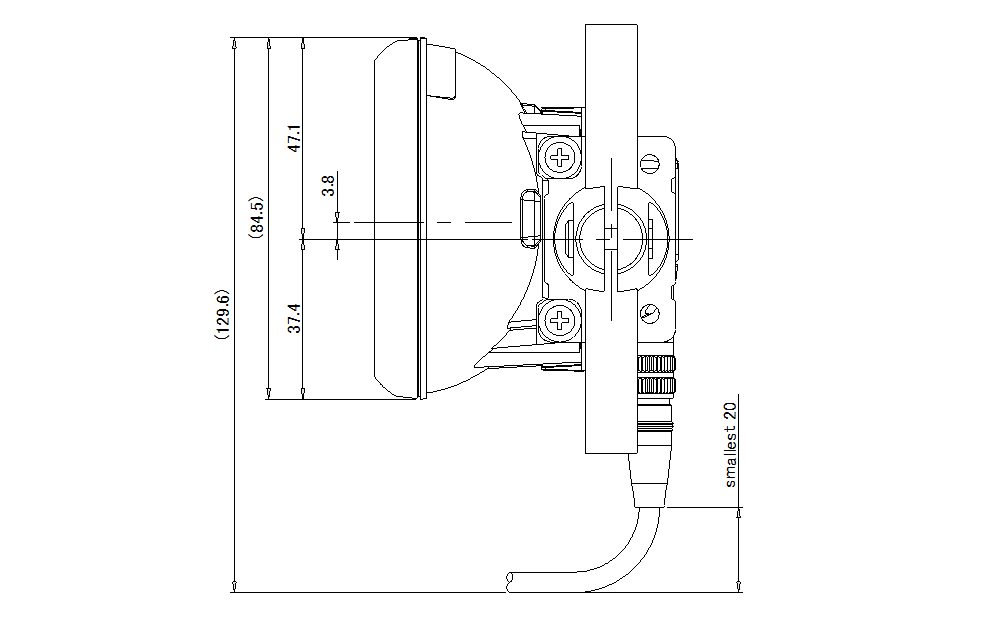

IV3-G/GD05/OP-87910 Dimension 03

IV3-G/GD05/OP-87908 Dimension

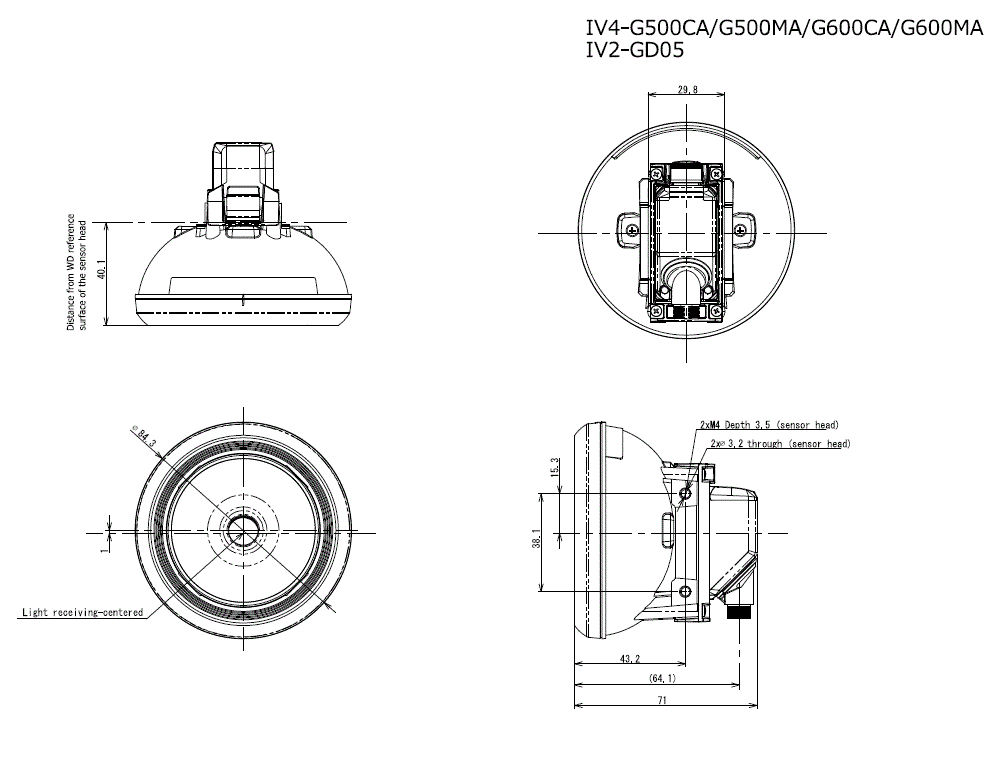

IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05 Dimension

IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05/OP87908 Dimension

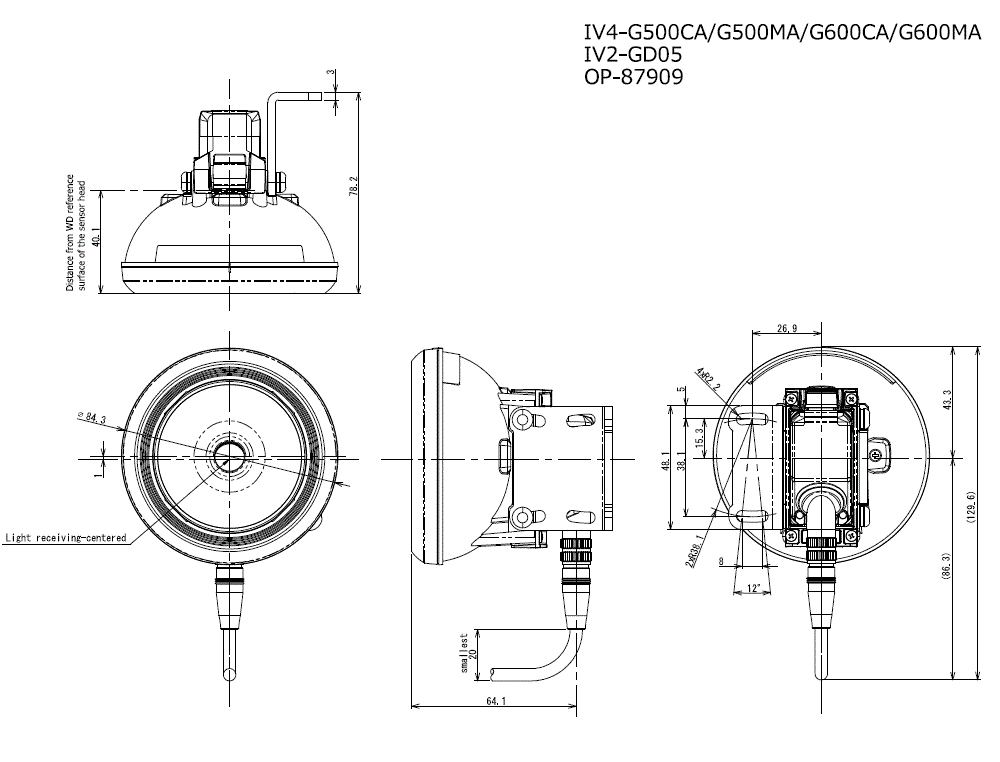

IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05/OP87909 Dimension

IV4-G500CA/G500MA/G600CA/G600MA/IV2-GD05/OP87910 Dimension
