* Download CAD file or product manual for larger image/text and more detail.

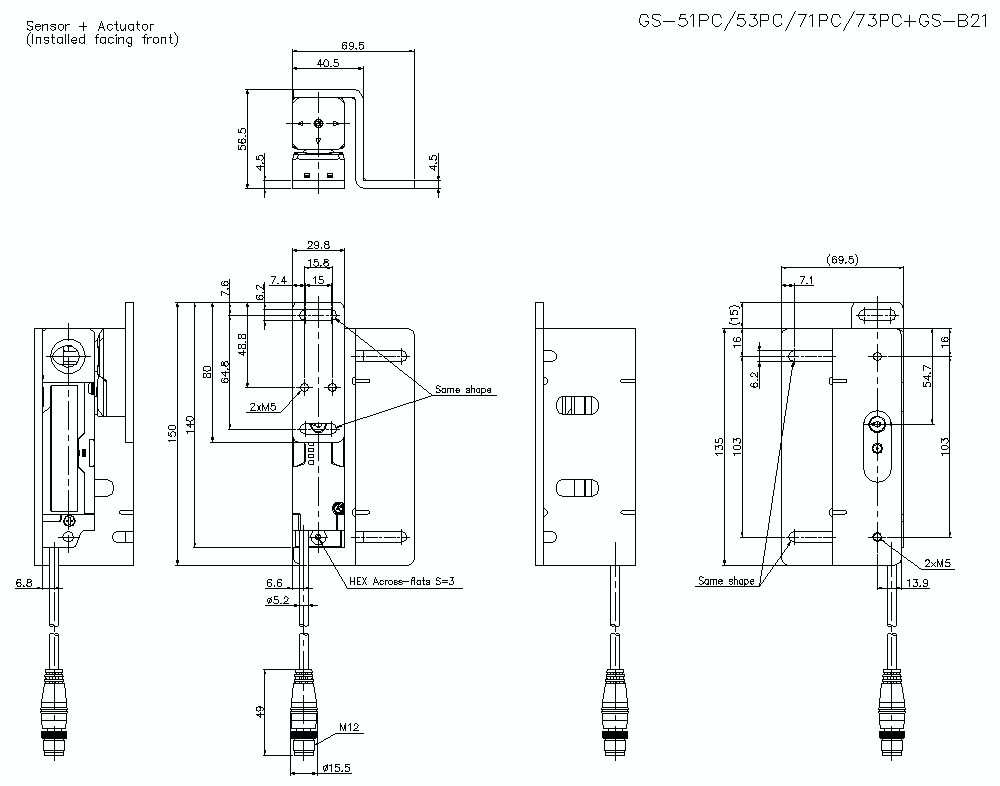

GS-51/71PC/B21 Dimension

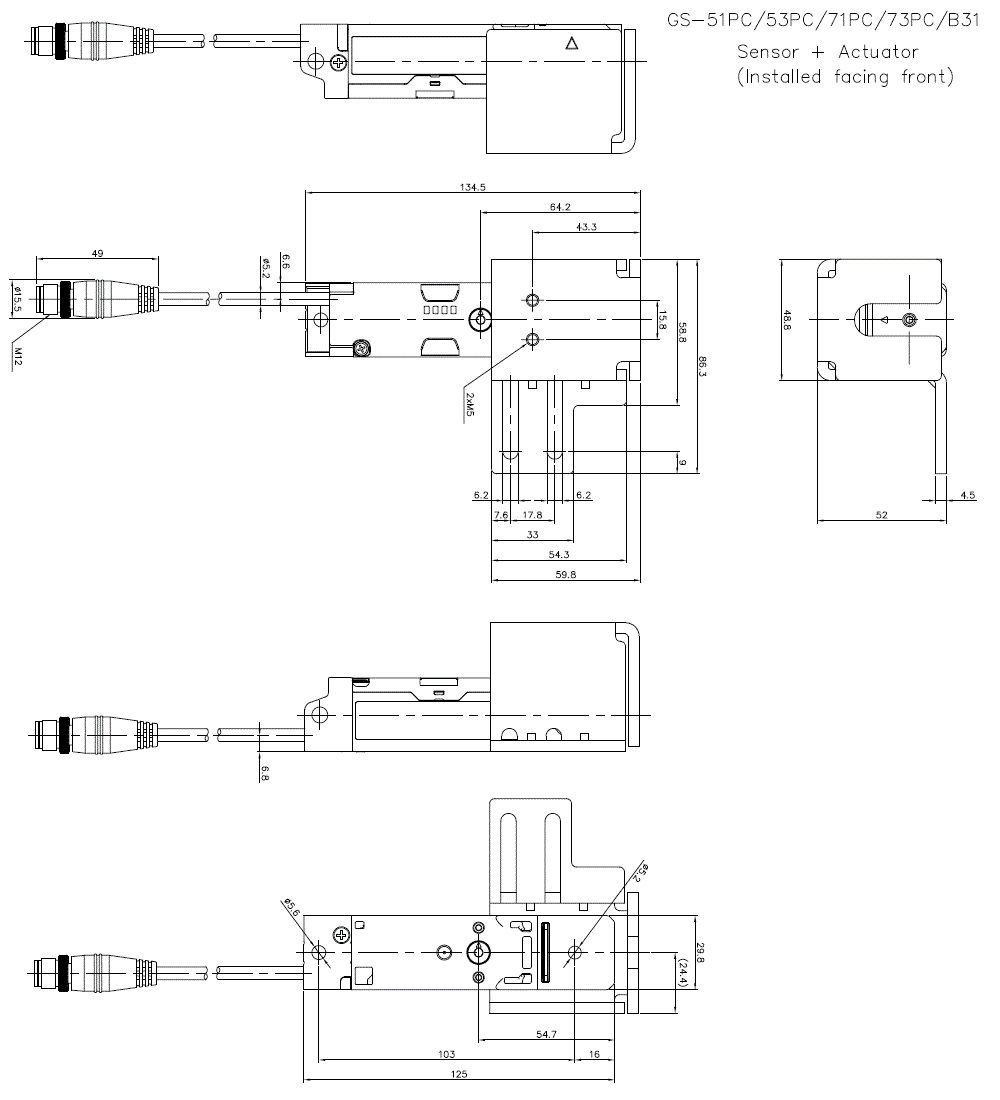

GS-51/71PC/B31 Dimension

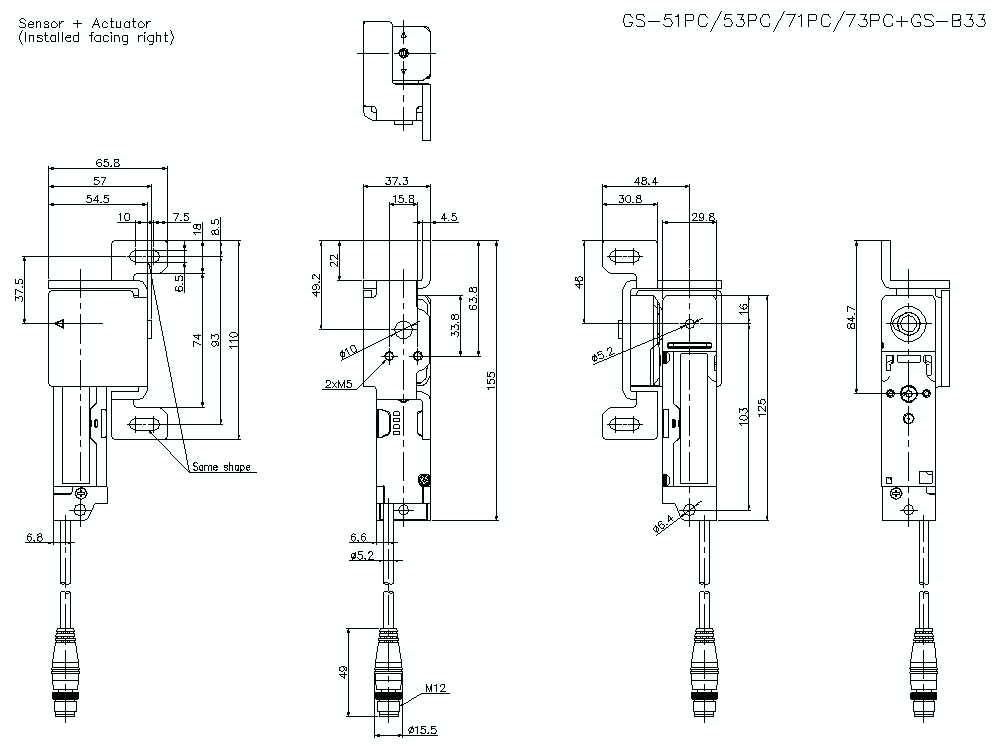

GS-51/71PC/B33 Dimension

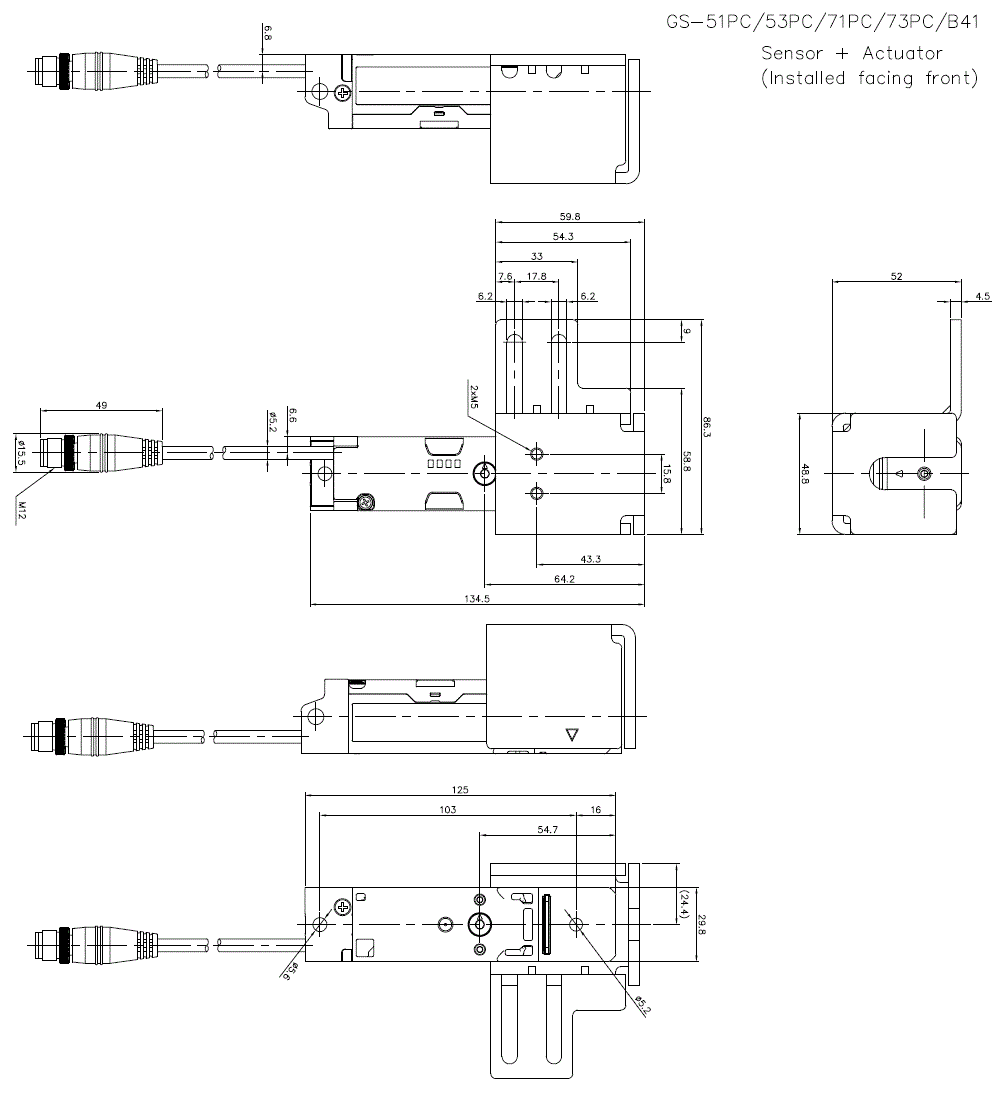

GS-51/71PC/B41 Dimension

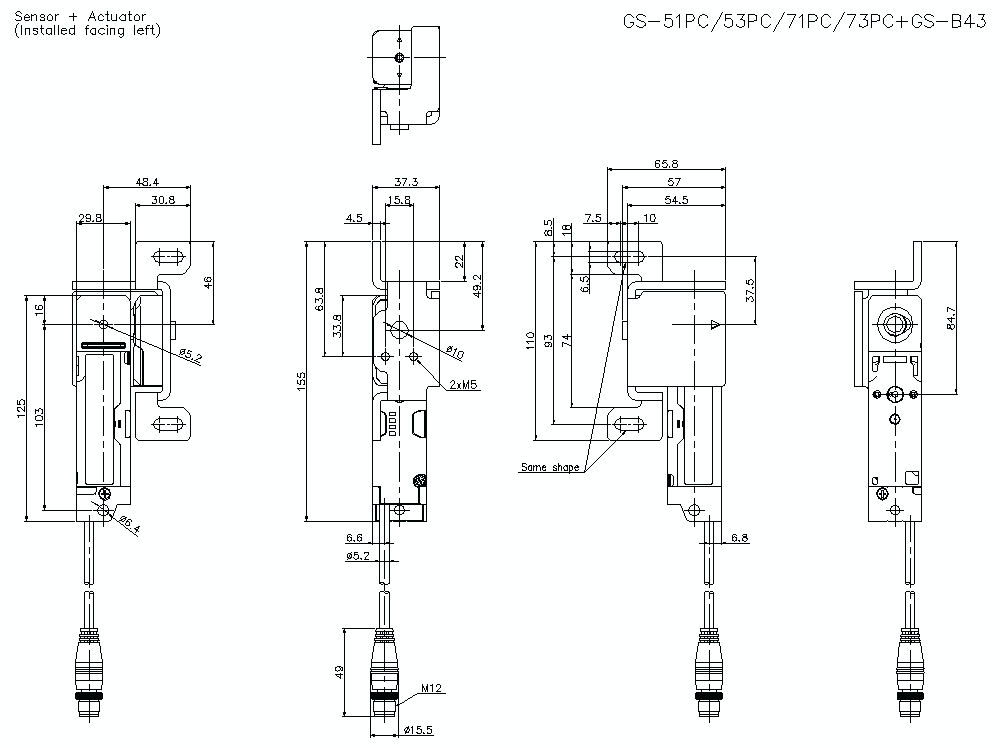

GS-51/71PC/B43 Dimension

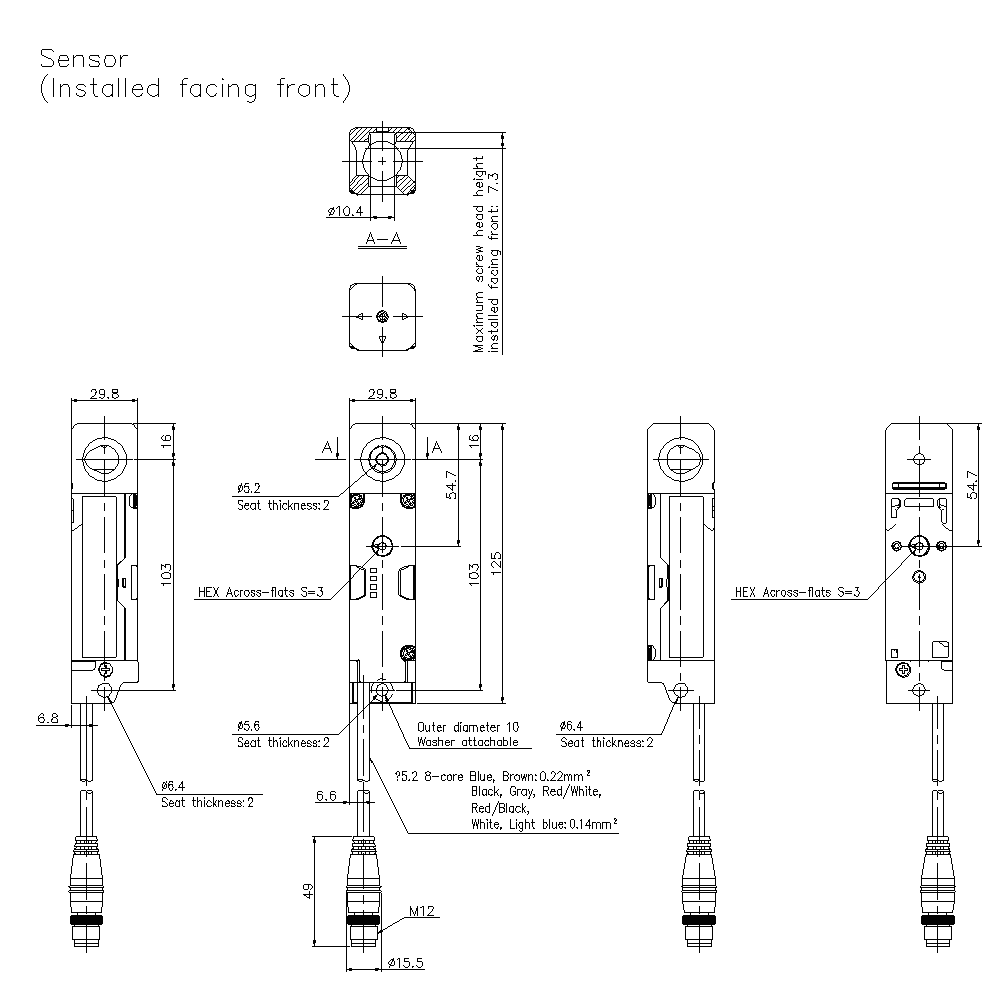

GS-51/71PC_01 Dimension

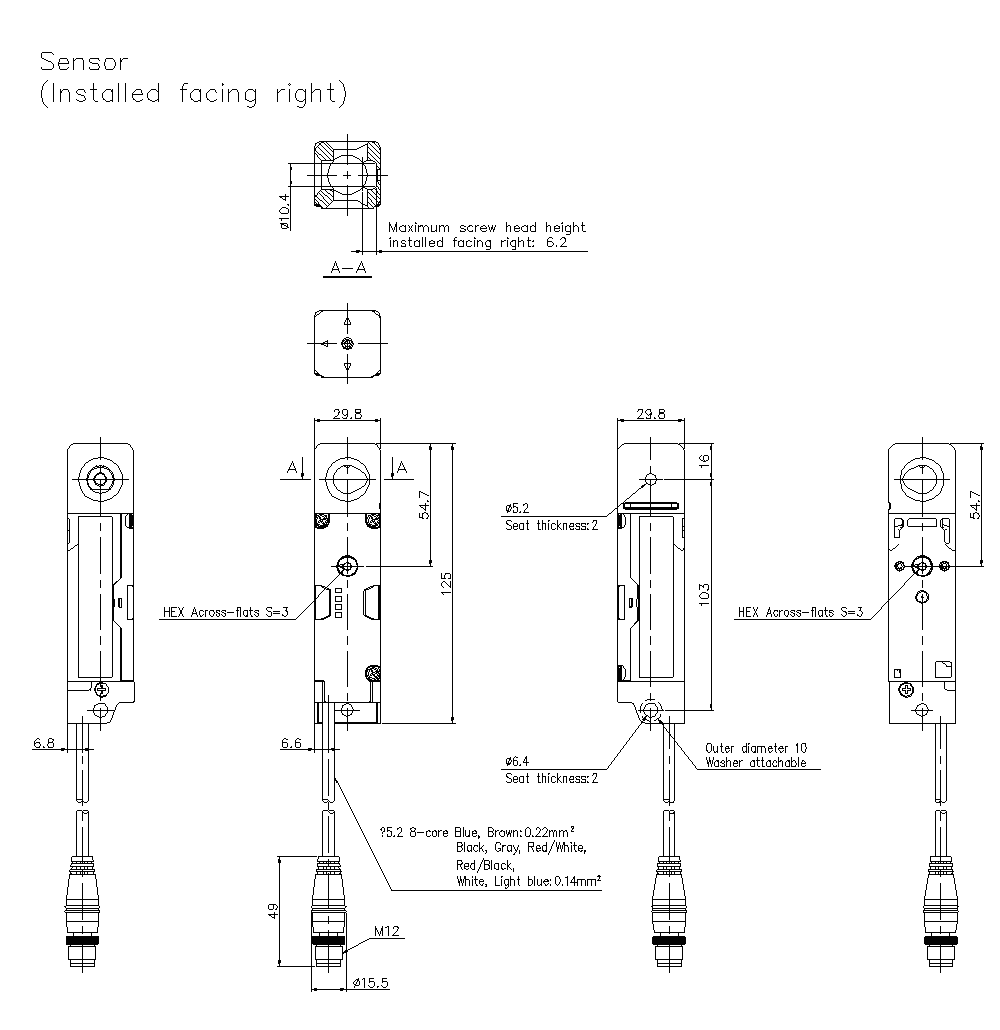

GS-51/71PC_02 Dimension

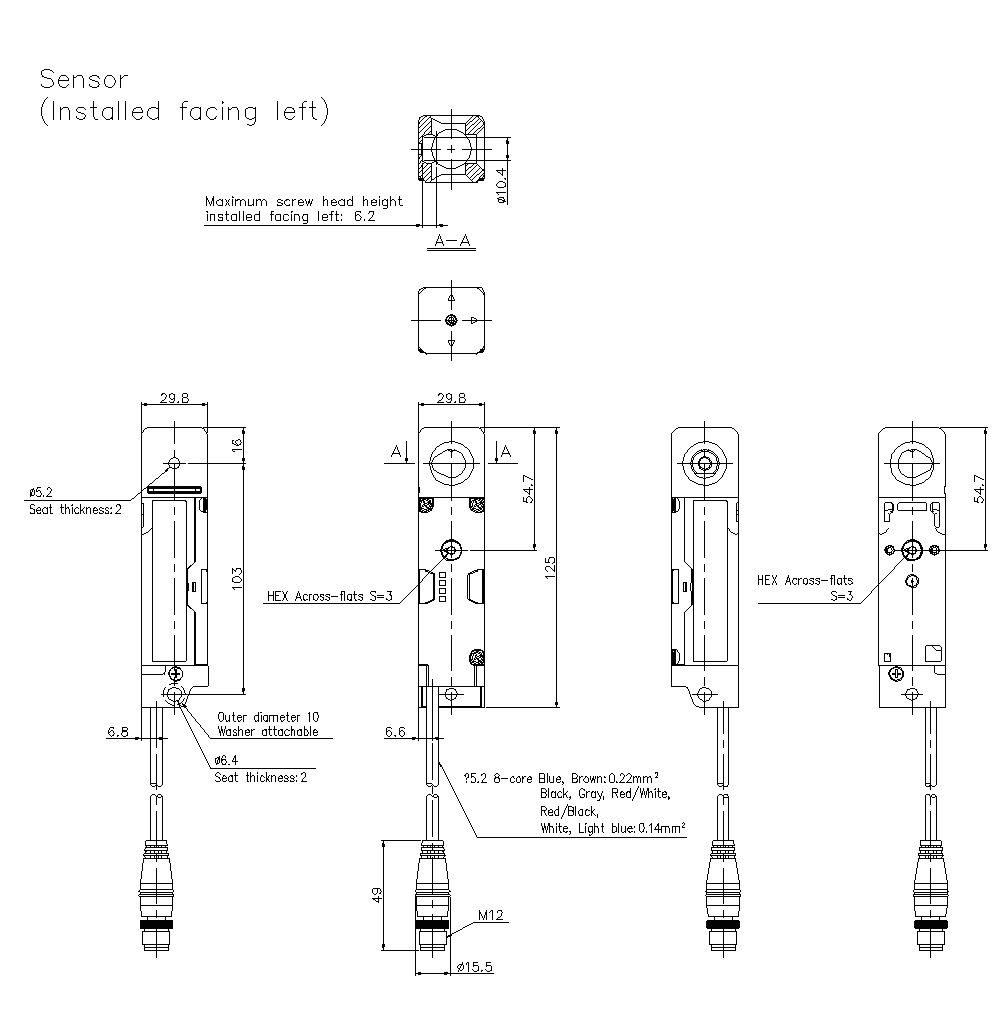

GS-51/71PC_03 Dimension

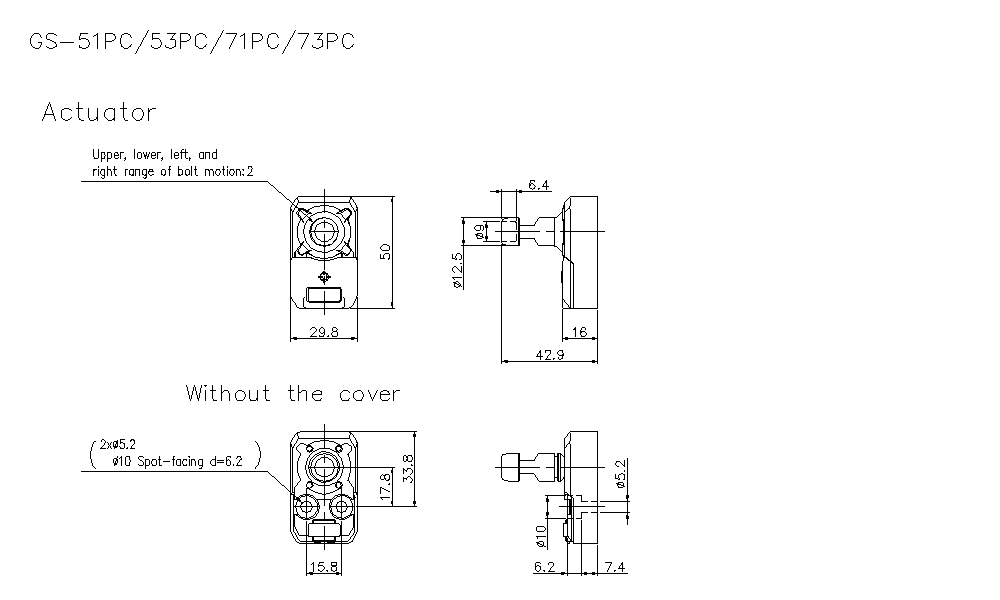

GS-51/71PC_04 Dimension

GS-51/71PC_05 Dimension

GS-51/71PC_06 Dimension
