I/O Circuit

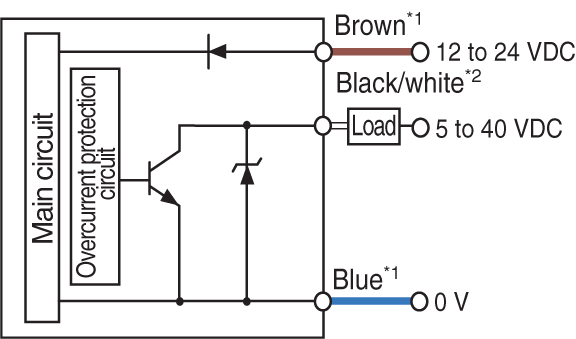

LV-11SB IO circuit

*1. LV-11SB only
*2. Black: Control output 1, white: Control output 2

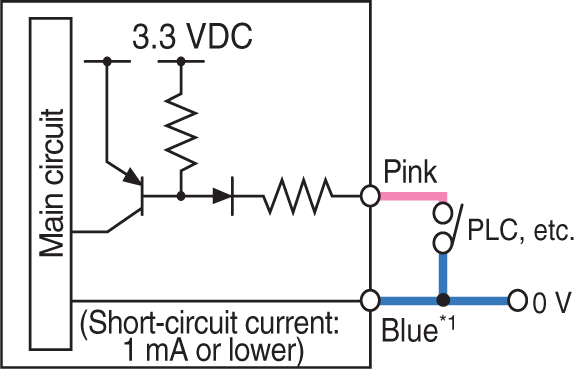

Laser emission stop input/External calibration input/Setting value
bank selection input/Received light intensity shift input

LV-11SB IO circuit

*1. LV-11SB only
