* Download CAD file or product manual for larger image/text and more detail.

Characteristics

EH-308 Characteristic

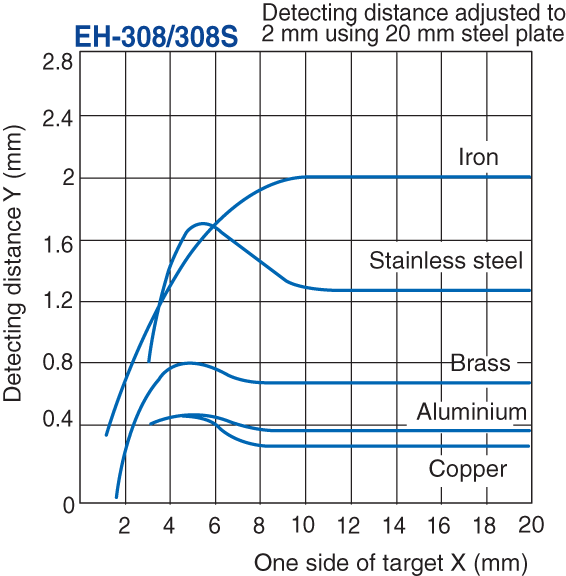

Detecting distance vs. size and material of target (Typical)

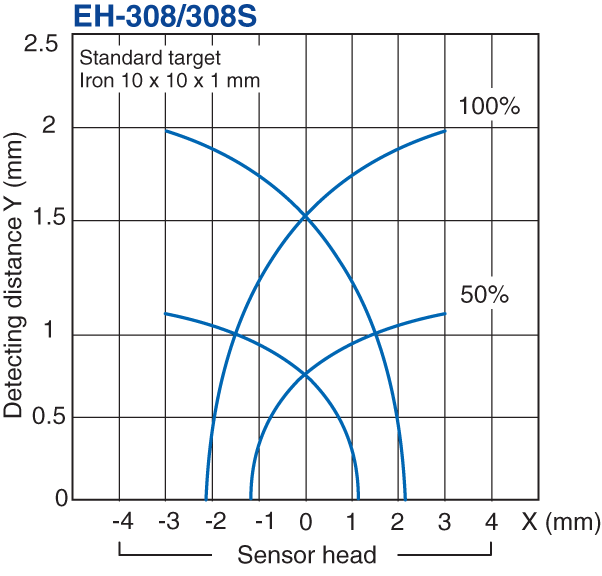

EH-308 Characteristic
