Measurement 22D Triangulation Laser Displacement Sensor

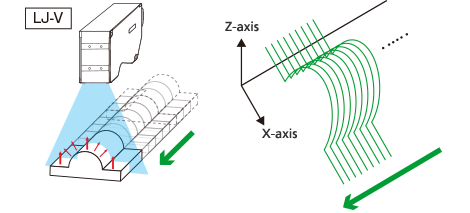

The cross-sectional shape of locations where the laser hits can be obtained. High-speed sampling makes it possible to achieve stable detection even if the workpiece moves.
KEY POINTS
- Shapes can be measured without moving the sensor head and target.
- The shape of large targets can be measured by installing multiple sensor heads.
LJ-V Series
- 2D Triangulation method.
- e connected.
- In-line Multi-point measurement.
- World's Fastest sampling rate at 64,000 images/sec.
Click here for more information.
LT Series
- Confocal method
- 2 μm spot diameter
- Superior thin film measurement capabilities
Click here for more information.
