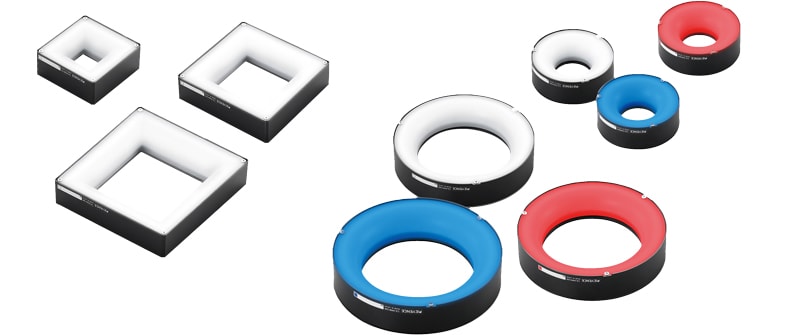

Multi-angle Lights (Ring/Square) Combines the principals of ring, dome and low angle light sources into one
CA-DRxM/CA-DQWxM
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_01_1863170.jpg)
Uniform illumination equivalent to dome lighting

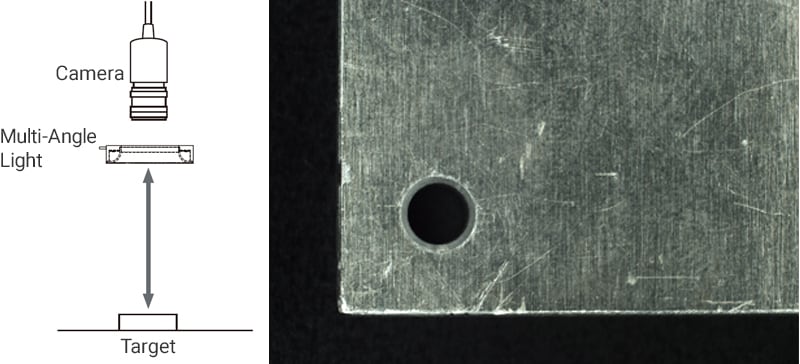

When the LWD is far
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_02_1863171.jpg)
LWD: 150 mm
When the light to target distance is far the multi angled, diffused light is applied across the whole of the target. This creates a uniform illumination effect without irregularities similar to using a dome light source.
Edge enhancement illumination equivalent to low angle lighting

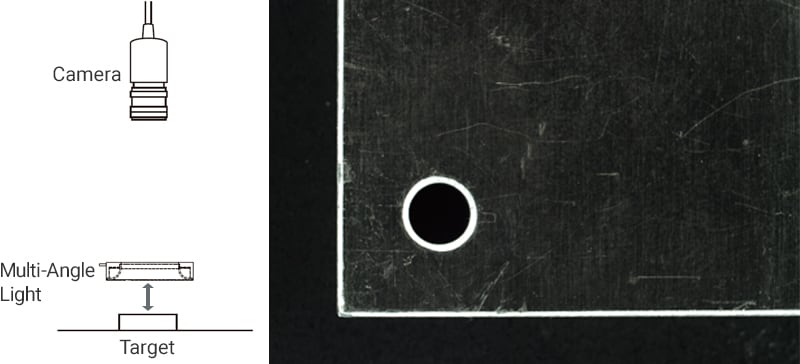

When the LWD is close
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_03_1863172.jpg)
LWD: 10 mm
When the light to target distance is short the light emitted at a shallow alignment reflects directly back to the camera. This causes the edges of the target to be highlighted, creating an effect similar to using a low angle light source.
High-intensity mounting of power LEDs

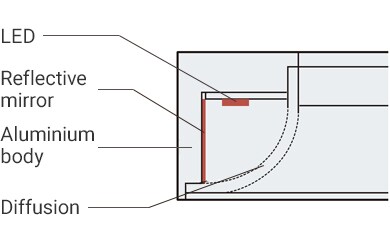

Since LEDs are mounted at high intensity (narrow pitch), uniform high intensity light is generated.
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_04_1863173.jpg)

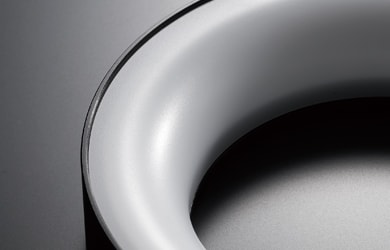

Matte-finished diffusion plate
To obtain maximum diffusion effect, the whole area of the diffusion plate has a matte finish.
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_05_1863174.jpg)
Application
Inside of a plastic cap
With standard lighting
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_06_1863175.jpg)

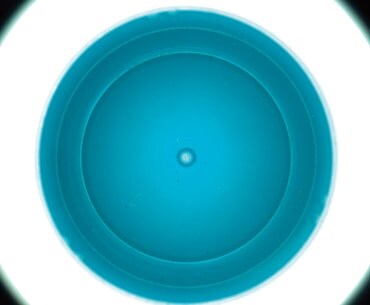

With multi-angle light (Ring)
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_07_1863176.jpg)
BGA/solder ball inspection

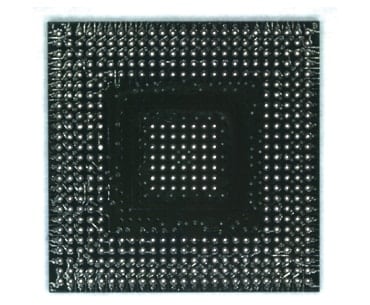

With standard lighting
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_08_1863177.jpg)

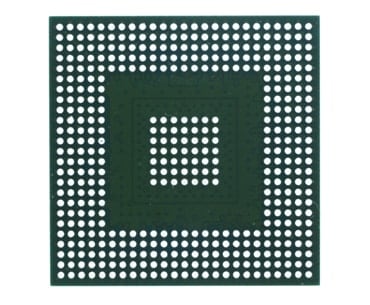

With multi-angle light (Square)
![](/cscz/Images/peripheral_ca_dr_m_ca_dq_m_img_09_1863178.jpg)
