IN-LINE 2D MEASUREMENT SENSOR

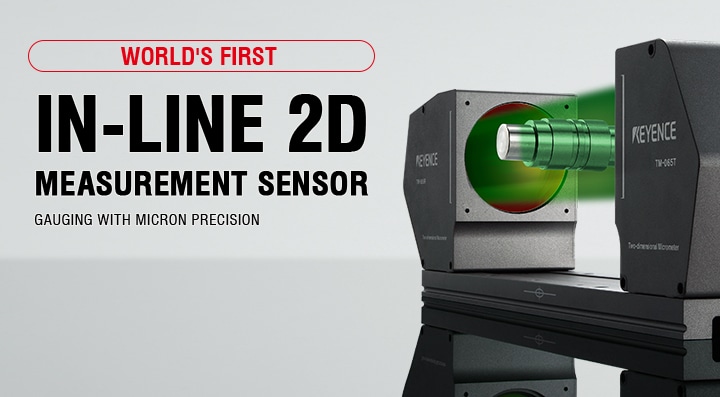

WORLD'S FIRST IN-LINE 2D MEASUREMENT SENSOR GAUGING WITH MICRON PRECISION

High-speed 2D Measurement Sensor TM-3000Series

When it comes to in-line measurements, do you have any of these headaches?

It takes too much time and effort
to measure a variety of dimensions at multiple locations.
Is it possible to reduce the measurement time?

YES

Just place the target
to measure a maximum of 16 dimensions simultaneously!
This makes it possible to reduce the measurement time!

The TM-3000 will measure outer diameter, step, and angle at the same time. This eliminates problems that occur when repositioning the target.

Measuring the outer diameter of a stepped shaft

Download measurement guide

During in-line measurements,
I can't get the correct measurements
because of part orientation, and tilt in the fixture.
Can the TM-3000 compensate for this problem?

YES

Even when objects are conveyed in random orientations,
automatic correction ensures that accurate measurements are performed!

The TM-3000 has position correction tools that enable the system to accurately measure parts presented in a random orientation, or when it's difficult to position parts consistently.

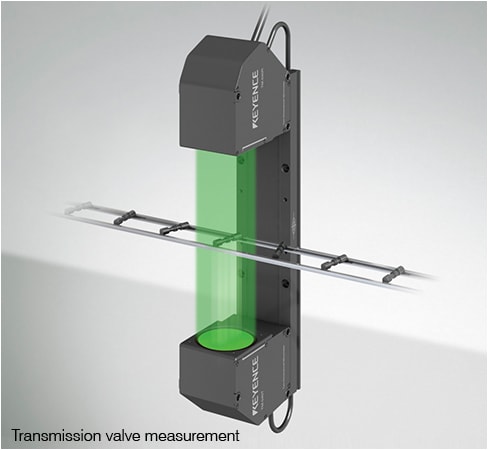

Transmission value measurement

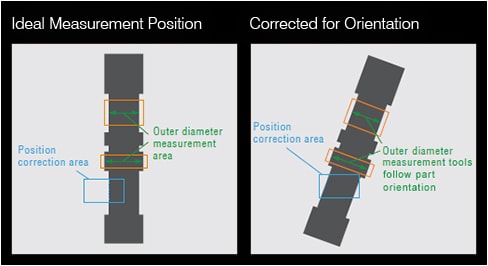

Ideal Measurement Position / Corrected for Orientation

Download measurement guide

When setting up my vision systems,
I have difficulty calibrating the field of view to
read accurate dimensions.
Is there a NIST traceable, pre-calibrated system out there?

YES

TM-3000 uses telecentric lenses with a fixed field of view.
This enables pre-calibration in engineering units, not pixels.
TM delivers out-of-box accuracy unaffected by depth of field.

Why TM-3000?

  1. 1) Increase confidence in your inspection processes by using reliable, low maintenence, measurement systems.
  2. 2) Save headaches and time spent choosing lenses, lighting, designing fixtures, and calibrating.

Download measurement guide
