  • VR-5000 Series

  • Change Your contracer with Wide-Area 3D Measurement

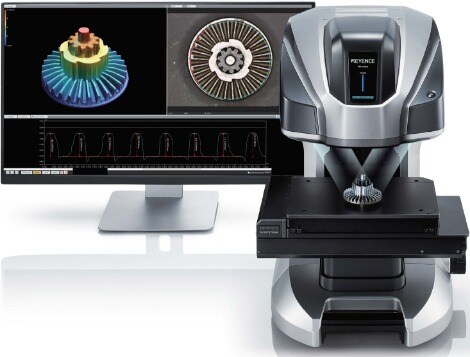

    System VR-5000

    Are You tired of using a contracer and not having accurate measurements? Try KEYENCE new Wide Area 3D Measurement system VR 5000 and experience high accuracy 3D inspection.
    • Non-contact 3D measurement in as little as 1 second
    • Measure areas up to 100 x 200 x 50 mm
    • Place and press operation eliminates user error
    • Compare directly to CAD files
  • What is the VR-5000?

    The VR-5000 is a non-contact 3D measurement system that is able to measure wide areas quickly and accurately. It’s perfect for measuring profile, roughness, flatness, wear volume, or comparing 3D scan data to CAD files and determining if a part is good or bad.

  • Switching from a contracer to the VR-5000.

    Conventional measurement tools such as contracer or caliper have limited viewing areas and require significant time and effort to properly measure a surface. With the VR-5000, the user places their sample on the stage, clicks measure, and receives 3D measurements in seconds, even on complex surfaces and wide areas. Fast, easy, and simple.

  • How does the VR-5000 work?

    The VR-5000 emits structured light through several double-telecentric lenses to reduce distortion and receive the most accurate data possible. Distortions in the light bands caused by height differences are converted to height using triangulation. The high-accuracy CMOS sensor also allows for a full color imaging.

  • Flatness Measurement with the VR-5000

    Unlike contracer the VR-5000 model allows detection of all elevations and depressions of a measurement object quickly. So any point can be measured reliably.

  • Surface Analysis and 3D Flatness Measurement in as little as one second

  • Multiple Telecentric Lenses for High Accuracy

  • Accurate 3D Measurements on Complex Surfaces

  • Visual comparison of 3D images from multiple samples side by side for easier analysis.


    KEYENCE has been an industry leader in sensing technology since 1974. KEYENCE's direct sales team visits customers with live demo equipment to find the best possible solution for all applications.

Learn more about the VR Series Wide-Area 3D Measurement System!
