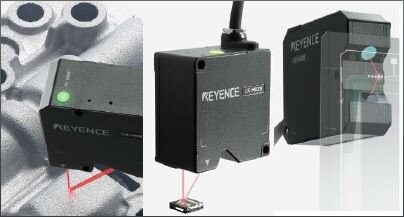

1D Infrared distance sensor:
Ultra High-Speed and High-Accuracy for width measurement of any target with one displacement sensor
Colour, materials, surface conditions… All this affects the image quality and width measurement results. The ultimate time and cost saving comes from the ability of a infrared distance sensor to adjust to different surfaces automatically.
- Download 1D measurement guide

COARSE TARGETS

By using a infrared distance sensor width with a wide beam spot, the effect of the uneven surface is averaged and stable height measurements of even coarse targets are possible.
FINE TARGETS

The smallest spot diameter of ø25 μm can measure any target, from fine components to profile measurements, with the highest level of accuracy in the industry.

TRANSPARENT / MIRROR TARGETS

A group of heads of infrared distance sensor specifically designed for use on highly reflective targets such as glass or other mirror surfaces allow to get a sufficient amount of light in order to obtain the measurements.
CONTROL OVER DETECTION PROCESS

The best control over the width measurement process can be acquired when combining remote control (up to 10 meters away from the operation), direct control (the compact controller with a built-in display) and touch panel control.

To learn more about 1D inline measurements please download the complete displacement sensor manual.
