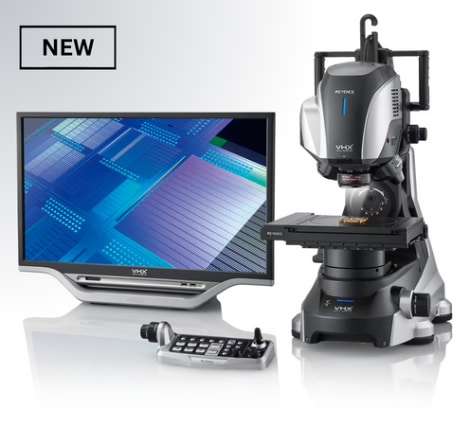

Digital microscope 3D and profile measurement
A single device for measurement, observation, quality control and surface analysis for all industries and academic research. Easily determine the shape or topography of the surface.
- High-resolution 3D images
- Advanced 2D/3D measurement tools including grain and contamination analysis compliant with ISO 16232 & VDA 19
- 0.1 to 6000× magnification, bright field, dark field, transmitted light, DIC, and polarised illumination
- Observation of low-contrast and highly-reflective samples
- Elemental analysis, observe and instantly identify materials
▶️ Download Catalogue, to learn more.
- Download Catalogue
- Price

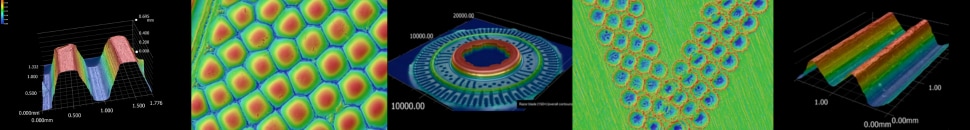

High-resolution 2D/3D images

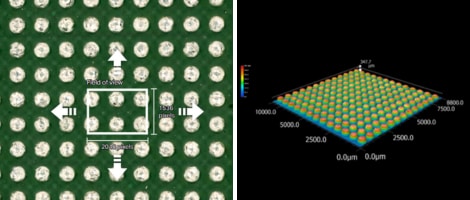

Digital microscopes have the ability to scan an entire surface and capture each different area that comes into focus, combining them into one fully-focused image.

The relative height data from each focal plane can then be used to reconstruct the surface into a 3D image that users can freely manipulate, making it easy to understand the true shape of the surface.

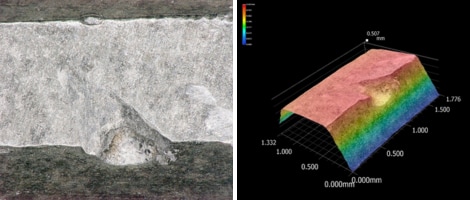

Create 3D Images of even Highly-Reflective Objects

Metal and mirrored surfaces have hindered 3D image creation in the past due to their high level of reflectivity.
Now, by combining glare removal functions and 3D image compilation technologies, it is possible to construct an accurate 3D profile even on targets with extremely reflective surfaces.

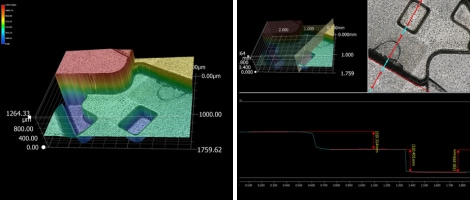

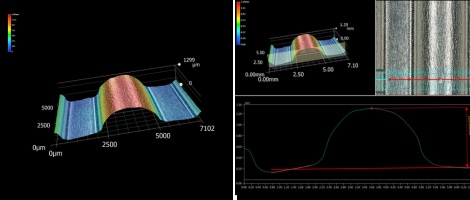

Displaying height data and profile measurement

Download Catalogue

WHY KEYENCE?

KEYENCE is a global leader in the industrial automation industry. We currently have 240 sales offices in 46 countries and serve more than 300,000 customers worldwide. We offer best in class products, direct support and comprehensive technical assistance.
