Digital Image Analysis

What is the KEYENCE IM Series?

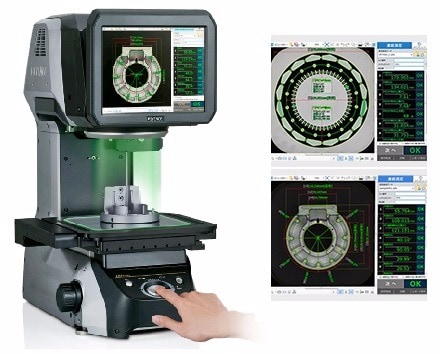

The IM Series Instant Measurement System is a visual inspection dimension measurement system that performs measurements that previously required a range of inspection systems including optical comparators, hand tools, measuring microscopes, and Geometric Dimensioning and Tolerancing (GD&T) and profile measurement systems.
Place and Press
Digital Image Analysis

After placing the part on the stage, just press the button and in just 3 seconds you will receive up to 99 measurements on up to 100 parts with an OK/NG judgment, significantly reducing quality inspection time.

Eliminate Operator Error

Utilizing the IM Series' advanced optics and high-speed image processing technology, dimensional measurement is now consistent regardless of who's operating the system.
Automatic Data Recording and Inspection Reports

Ready inspection and analysis reports can be automatically saved without having to manually record the data by hand to make the digital image analysis complete and easy.

For more information please download the brochure.
