• Measuring roundness with the Digital Measuring Projector IM-8000

  • Roundness measurement with the digital measuring projector
    Reliable, simple and fast

    The new Digital Measuring Projector has a rotation unit with which, among other things, roundness can be measured.

    • Clamp the component
    • Start measurement
    • Reliable, optical shaft measurement in a few seconds

    For more information, please see our brochure.

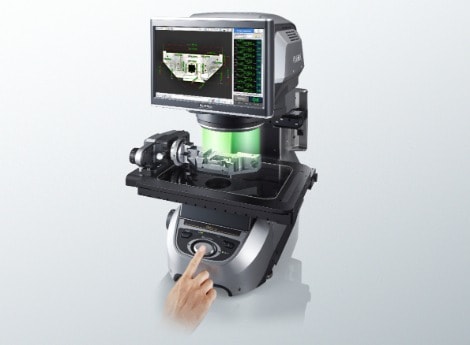

  • Measurement at the touch of a button

    Place or clamp the component and press the button - this is how all measurements with the digital measuring projector are started. Within a few seconds, up to 300 dimensions on up to 100 components are measured simultaneously.

  • Checking roundness

    Roundness checks can also be carried out easily and reliably with the new rotary unit. At the touch of a button, the component rotates 360° to check roundness independently of the user

  • Intelligent measuring system

    The digital measuring projector provides support with automatic positioning and alignment of the component as well as automatic focus adjustment and illumination adjustment, among other features.

  • Automatic documentation

    All measurements are automatically documented and test reports and evaluations are available at the touch of a button. Data no longer has to be entered manually.

  • Clamp component ...

  • ... and press the button

  • Simple measurements

  • Shaft measuring device
