Dimension Measurement

Dimension Measurement
With the NEW IM-7000 Series
- 99 dimensions on up to 100 parts in seconds
- No operator subjectivity
- Place and press inspection
- Automatically record data and generate inspection reports
- Various options from basic measurement to geometric dimensioning and tolerancing
- Download Catalogue

What is the KEYENCE IM Series?

The IM Series Instant Measurement System is a visual inspection dimension measurement system that performs measurements that previously required a range of inspection systems including optical comparators, hand tools, measuring microscopes, and Geometric Dimensioning and Tolerancing (GD&T) and profile measurement systems.

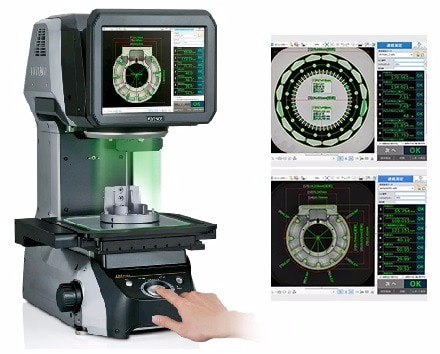

Place and Press
Dimensional Measurement

After placing the part on the stage, just press the button and in just 3 seconds you will receive up to 99 measurements on up to 100 parts with an OK/NG judgment, significantly reducing quality inspection time.

Eliminate Operator Error

Utilizing the IM Series' advanced optics and high-speed image processing technology, dimensional measurement is now consistent regardless of who's operating the system.
Automatic Data Recording and Inspection Reports

Unlike a classical digital projector, complete inspection and analysis reports can be automatically saved without having to manually record the data by hand.

Spring
Lathe Processing
Threads
Plastic with Toplight
