• The Best Way to Measure GD&T

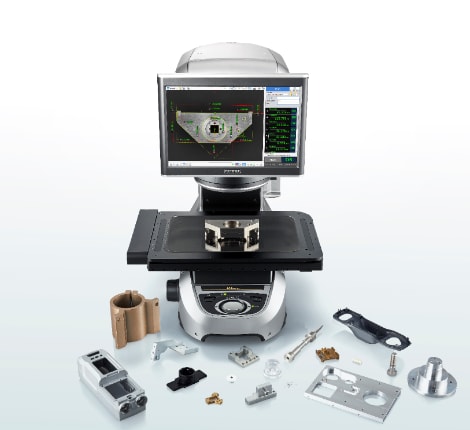

    IM-8000 makes GD&T measurement easier.
    Just place the part, and press the button. Just seconds.
    Then the measurement is finished and the result is displayed.
    The following GD&T can be measured.
    • Parallelism      /  Perpendicularity
    • Flatness          /  Roundness  /  Straightness
    • Concentricity   /  Coaxiality
    • Runout            /  Contour
    • Symmetry       /  True position

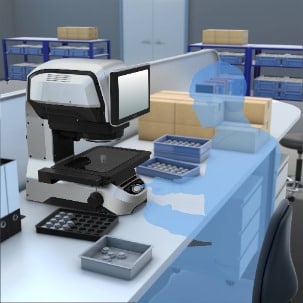

  • Inspection area

    For incoming inspection and pre-shipment inspection. By using IM-8000, you can shorten the time to the next process and shipping, which helps to improve efficiency and shorten delivery time.

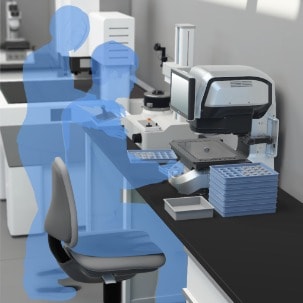

  • Measurement room

    IM-8000 can measure complicated measurement items. If there is IM-8000 in the inspection room, you can check the dimensions and GD&T easily.

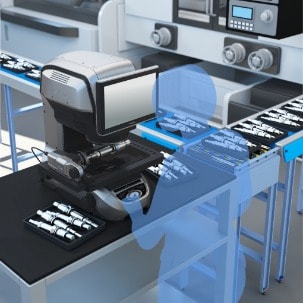

    • Processing floor

      IM-8000 can be used in the processing floor. The first article inspection and in-process inspection is also important to guarantee the quality. Fast and accurate measurement reduces machine idling time and waste of material due to making defects.

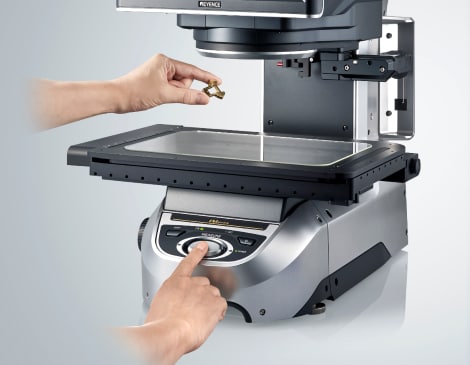

    • Just place the part and press the button

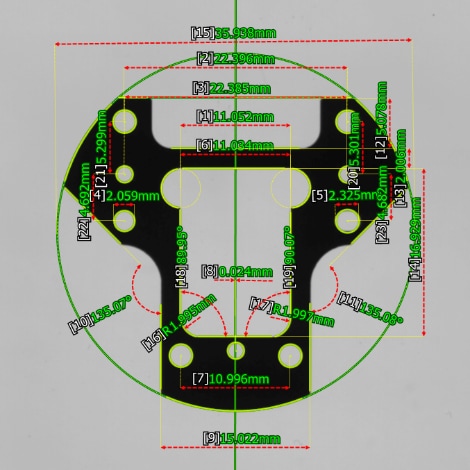

    • Measurement result appears easily
