performed in seconds
measurement results regardless of the operator
Easy usage by
anyone without training
usage and reporting

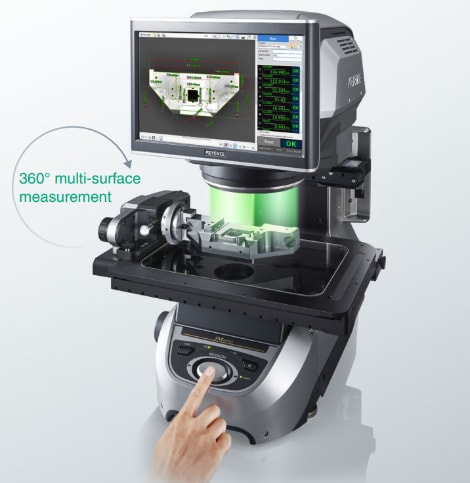

The Keyence IM Series Instant
Measurement System is a visual inspection system that performs
measurements in place of optical comparator, calipers/micrometer,
measuring microscope, optical CMM, laser measurement and other
Common measurement applications are: springs, stamped parts,
plastics, rings, gears, bottles, blind holes, threads, and
Conventional measurement applications have common problems:
measurements take a long time, varying measurement results
depending on the operator, limited amount of skilled employees who
can set up and operate the devices, costly trainings for the users
and complicated data management. With the digital profile projector
users will discover an innovative instrument that can reduce a 10
minutes job to JUST 5 seconds. Since the whole measurement routine
is automated together with focus and lighting, no matter who
operates the machine, it will give back always consistent results.
99 measurements can be performed
on 99 objects at the same time in 5 seconds with a repeatability of
±0.1 micron, and all measurement results are being
automatically recorded. Therefore, it drastically reduces user
time, and helps the users analyzing data through an easy and
automatic data management system. Its operation does not require
special skills and expensive trainings, and setting up the device
literally happens in minutes by only a few clicks. The Digital
Profile Projector is a very cost and time efficient solution
compared with classic profile projectors, measuring microscopes or
CMMs – it is definitely the next level in quality assurance.
KEYENCE has been an industry leader in sensing technology
since 1974. KEYENCE's direct sales team visits customers with live
demo equipment to find the best possible solution for all
Learn more about the IM-Series
Instant Measurement System!
