performed in seconds
measurement results regardless of the operator
Easy usage by
anyone without training
usage and reporting

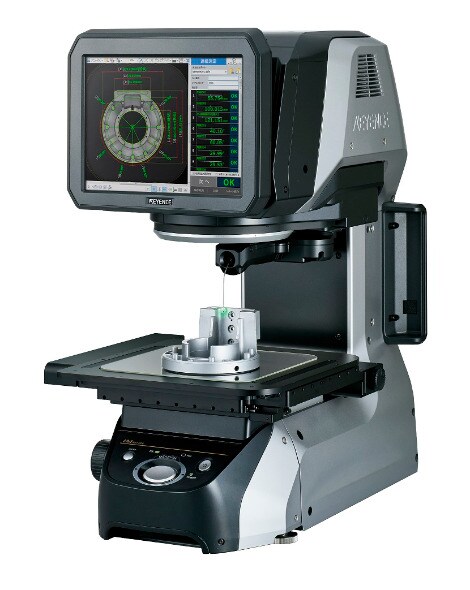

The IM Series Instant Measurement
System is a visual inspection system that performs measurements in
place of optical comparator, calipers/micrometer, measuring
microscope, optical CMM, laser measurement and other measuring
Common measurement applications
are: springs, stamped parts, plastics, rings, gears, bottles, blind
holes, threads, and more.
applications have common problems: measurements take a long time,
varying measurement results depending on the operator, limited
amount of skilled employees who can set up and operate the devices,
costly trainings for the users and complicated data management.
With the digital profile projector users will discover an
innovative instrument that can reduce a 10 minutes job to JUST 5
seconds. Since the whole measurement routine is automated together
with focus and lighting, no matter who operates the machine, it
will give back always consistent results.
99 measurements can
be performed on 99 objects at the same time in 5 seconds with a
repeatability of ±0.1 micron, and all measurement results are
being automatically recorded. Therefore, it drastically reduces
user time, and helps the users analyzing data through an easy and
automatic data management system. Its operation does not require
special skills and expensive trainings, and setting up the device
literally happens in minutes by only a few clicks. The Digital
Profile Projector is a very cost and time efficient solution
compared with classic profile projectors, measuring microscopes or
CMMs – it is definitely the next level in quality assurance.
KEYENCE has been an industry
leader in sensing technology since 1974. KEYENCE's direct sales
team visits customers with live demo equipment to find the best
possible solution for all applications.
Learn more about the IM-Series
Instant Measurement System!
