• Metallographic microscope 4K

    A single device for measurement, observation and quality control of metal surfaces

    • Large depth of field and high resolution
    • 0.1 to 6000× magnification, bright field, dark field, transmitted light, DIC, and polarised illumination
    • Observation of low-contrast and highly-reflective samples
    • Advanced 2D/3D measurement tools including grain analysis and contamination analysis

    ▶️ Download Catalogue, to learn more.

  • What is a metallographic microscope?

    A metallographic microscope is used to analyze the microstructure of metals and alloys. We can quickly and easily detect microcracks, calculate the phase fraction, examine metal surfaces for contaminants, porosity, defects, corrosion, and assess whether the material has been heat treated.

  • Why use a digital metallographic microscope?

    It provides more information and is easier to use than conventional imaging and measurement systems, enabling users to make better decisions in less time.

  • Porosity measurements

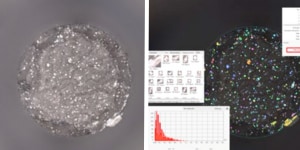

    Fractured Implant Screw, 50× Magnification

    In an easy operation, porosity measurements and counting can be carried out within a specified range on the sample. Areas that are not required can be excluded, and overlapping segments can be separated. Even when performed by first-time users, the operation will still yield highly accurate analysis results.

  • Grain Size Analysis

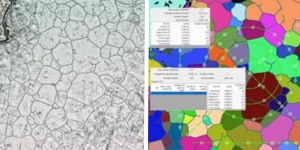

    Aluminium Surface, 2500× Magnification

    The measurement results can be easily saved as a picture or report. It is also possible to create measurement templates, which will not only save time, but also create reproducibility.

  • Surface Analysis

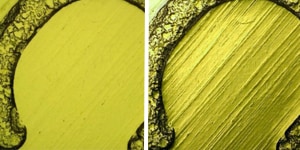

    Plated Metal 300× Magnification

    With the multi-lighting function, omnidirectional lighting data is captured automatically at the click of a button. A suitable image for observation can then be selected from this data. This eliminates the need to repeatedly adjust the lighting settings in order to obtain a clear image.

  • Depth of field, 20 times greater than optical microscopes

  • Easy color-based image interpretation

  • 2D/3D measurements

  • 2D measurements directly on the screen

  • WHY KEYENCE?

    KEYENCE is a global leader in the industrial automation industry. We currently have 240 sales offices in 46 countries and serve more than 300,000 customers worldwide. We offer best in class products, direct support and comprehensive technical assistance.
