PCD (Pitch Circle Diameter) Measurement

  • Fast, Easy and Accurate instrument for
     PCD (Pitch Circle Diameter) Measurement

    Just place the part and press the button.
    Then measurement result appears easily.
    Anyone can use easily and consistent result by anyone.

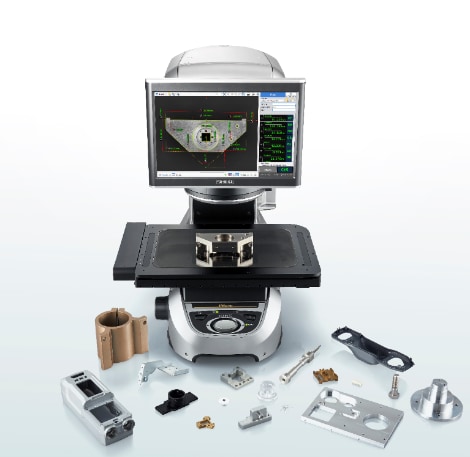

    With IM-8000, the following items can be easily measured.

    - PCD (Pitch Circle Diameter)
    - Radius
    - Diameter
    - Angle
    - Distance (Line to line, Hole to hole)
    - Chamfer
    - Virtual figures
    - GD&T

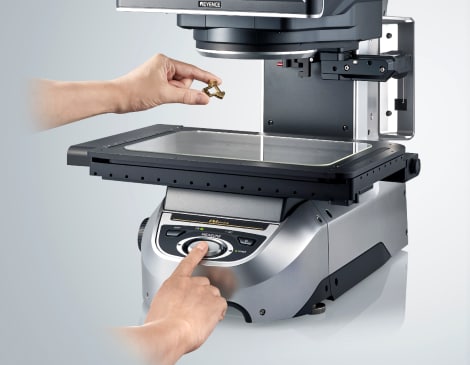

  • Just place the part and press the button

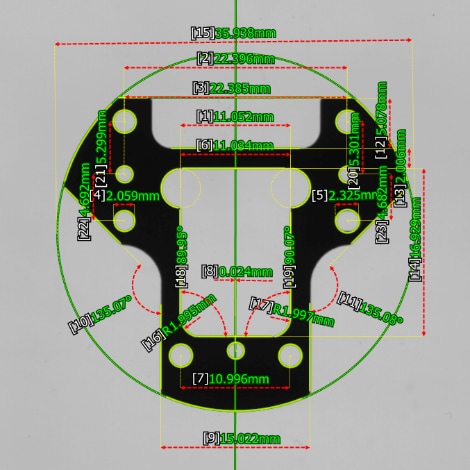

  • Measurement result appears easily
