Residual Moulding Detection
Industry
Resin, rubber, and other material industries
Advantages
Improved yield
Detection details
Sensors are used to detect whether targets remain in the mould after the ejector pin performs the ejection operation.

Judgement details

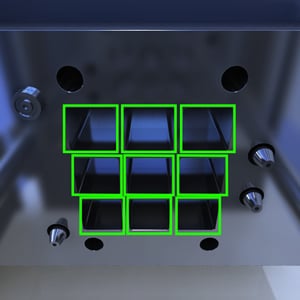

  • OK
    OK

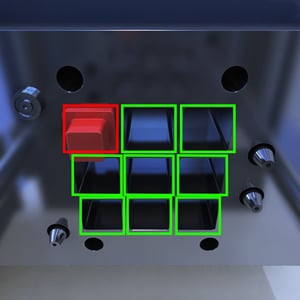

  • NG
    NG

Key installation points

With conventional models, detection of targets left in a mould required as many sensors as detection points or changeovers.
With the IV2 Series, detection is possible for up to 16 points with one sensor, enabling multi-point detection over a wide field of view.
Target detection settings can also be configured simply by touching the target colour, making it easy for anyone to configure the settings.
