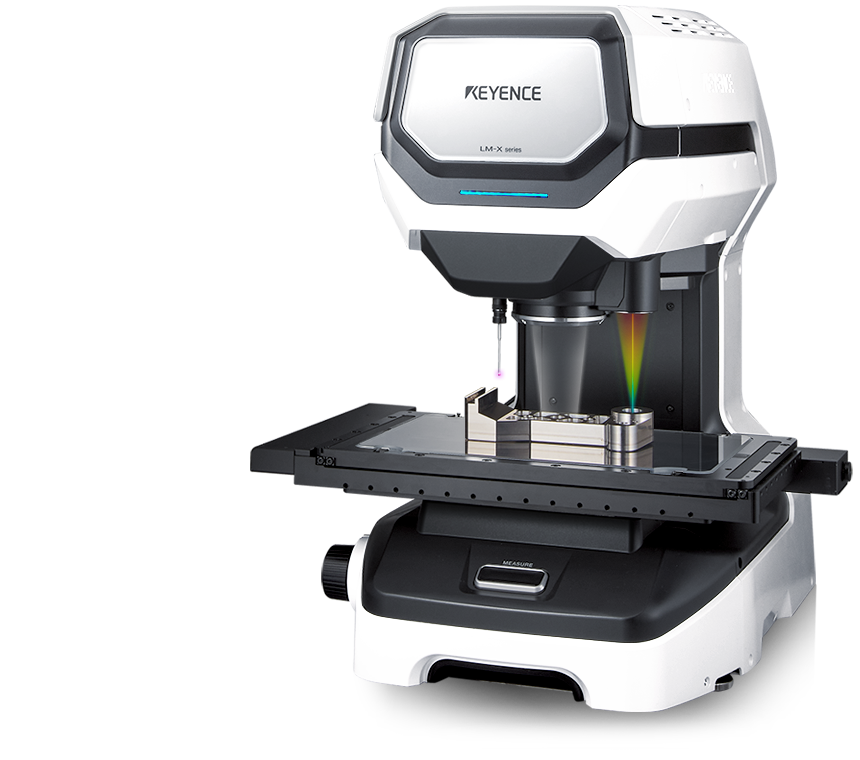

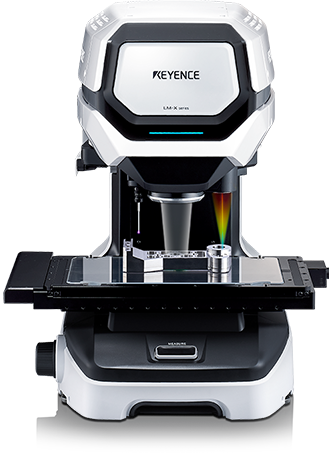

Three Measurement Methods That Allow Anyone to Easily Measure with High Accuracy

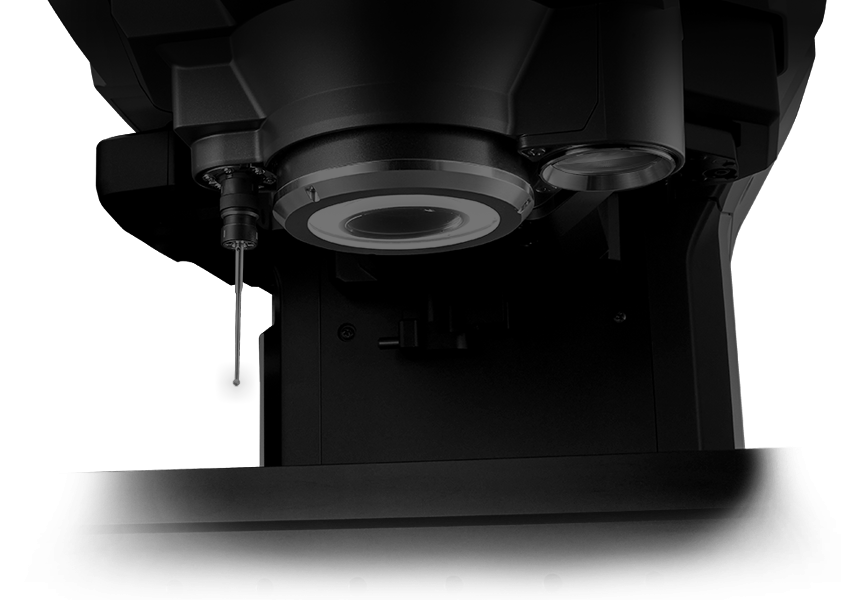

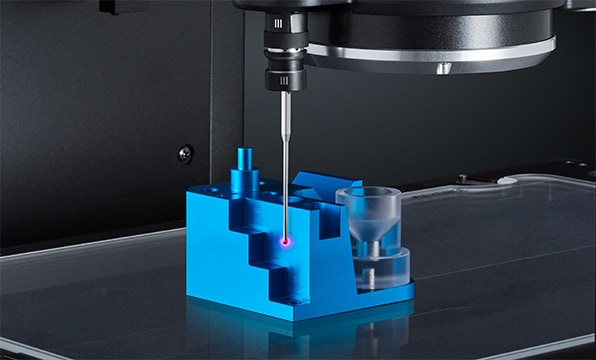

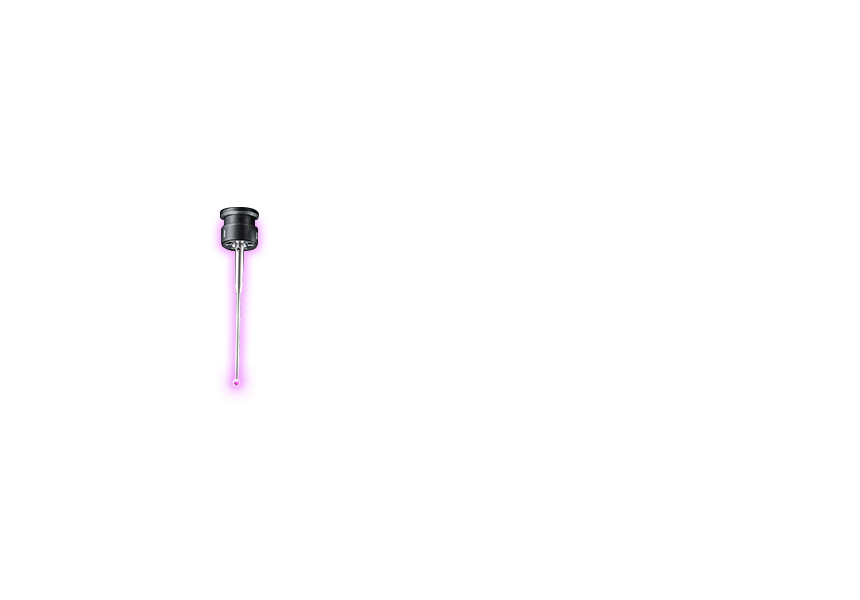

Touch Probe 3D Measurement
The probe can be moved freely vertically, horizontally, and at an angle, allowing the desired points to be measured with a soft touch. Even targets with 3D shapes can be measured accurately.

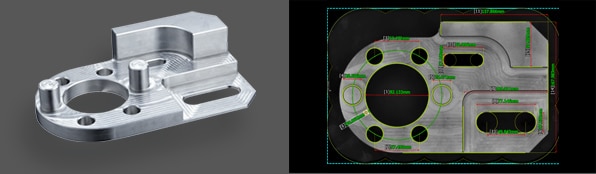

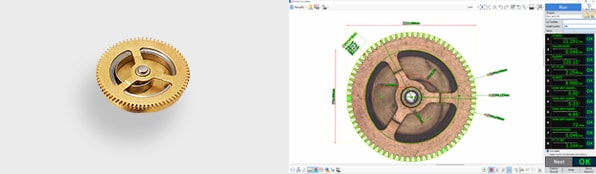

Ultra-high-definition Image Measurement

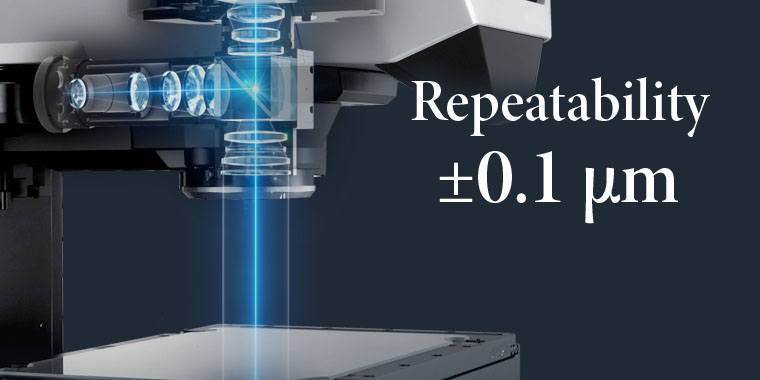

The 50x optical zoom and 20-megapixel high-definition images allow even fine locations to be captured accurately, making high-accuracy (±0.1 µm) measurements a reality.

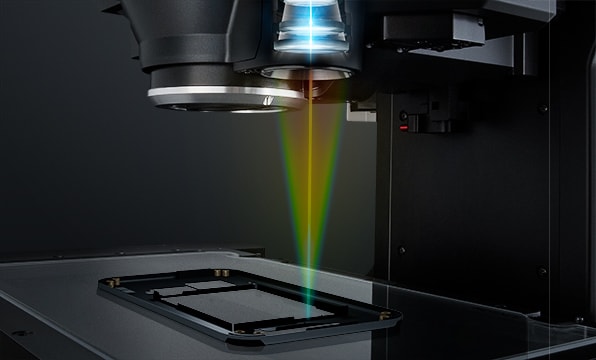

Laser Height Measurement
The built-in multi-colour laser instantaneously captures the height of the specified location on the target, allowing for accurate measurement regardless of the material of the target.

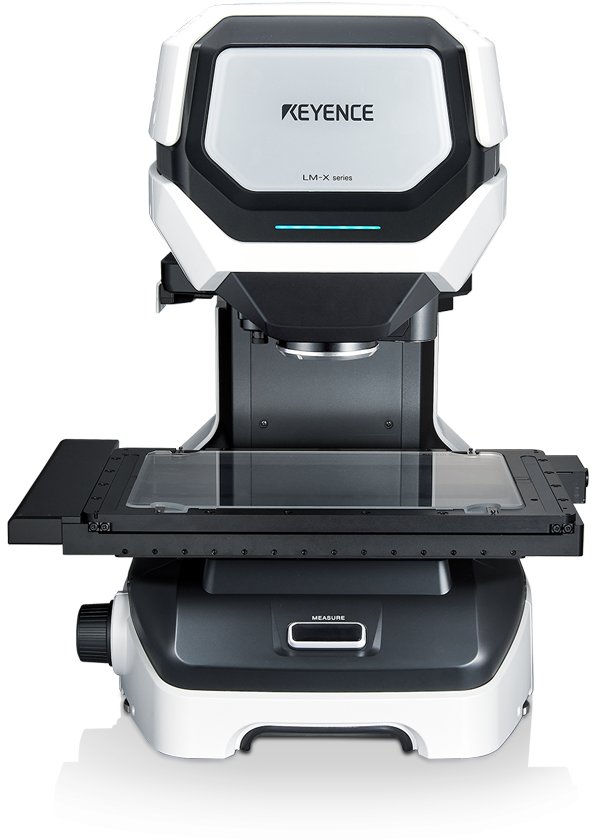

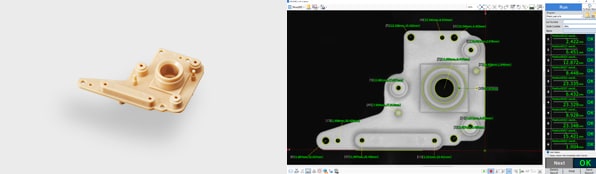

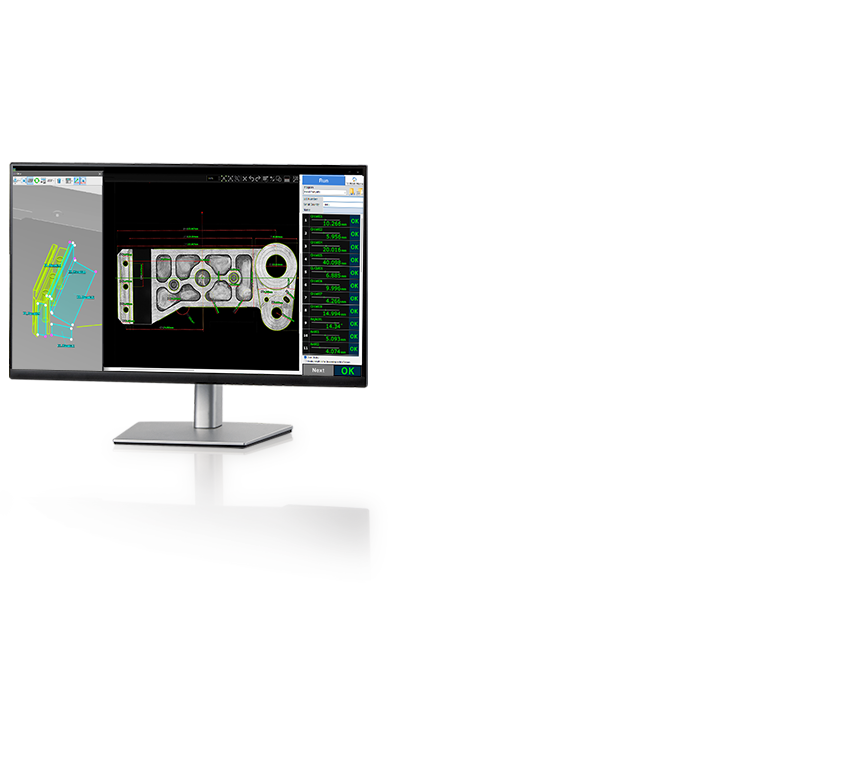

Simple “Place-and-Press” Measurement
No need to orientate or focus your parts.

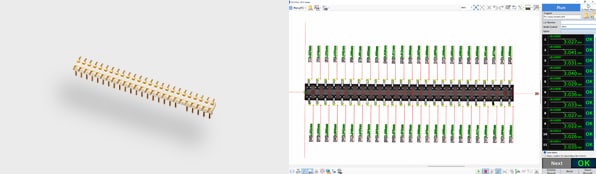

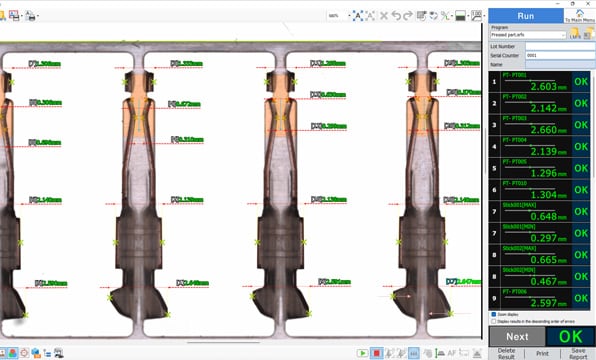

The speed and ease-of-use of this product makes it possible to measure up to 5000 points on up to 1000 targets at the same time, drastically reducing the measurement time.
- * Based on in-house sample measurement

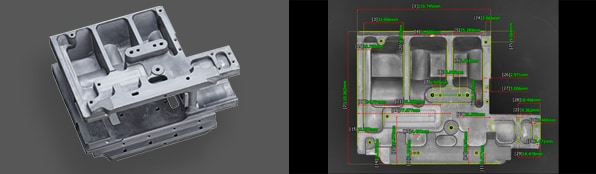

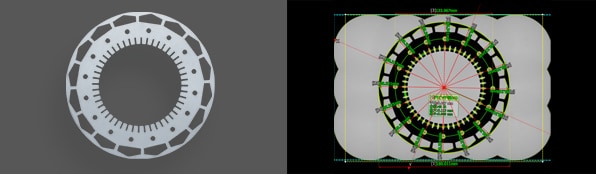

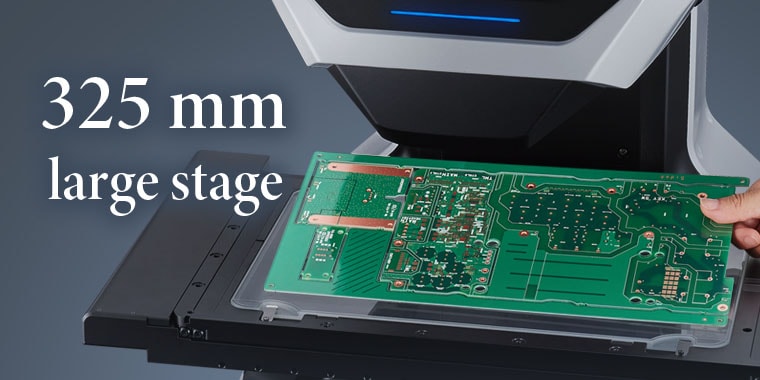

High Accuracy Over a Large Area Provides Support for a Variety of Applications
