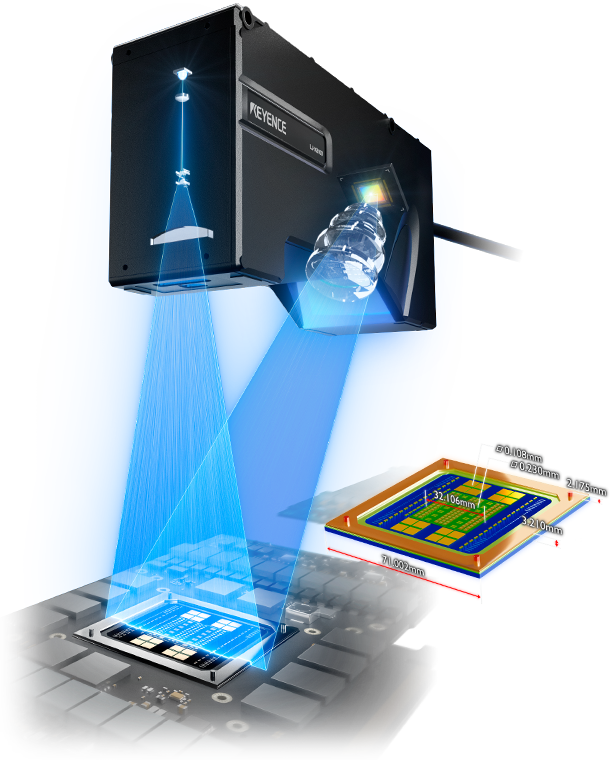

2D/3D Laser Profiler LJ-X8000 Series Achieving Twice the Measurement Range of Conventional Models Inline 3D Inspection Using Height Data

Conventional

New

Achieving large-scale measurement while maintaining ultra-high definition and high precision

Height, width, step height, flatness, etc.Measurement Inspection

Dents, swelling, burrs, etc.Appearance Inspection

Solve Both with Inline 3D Inspection

Handles Any Situation to Solve Your Challenges.

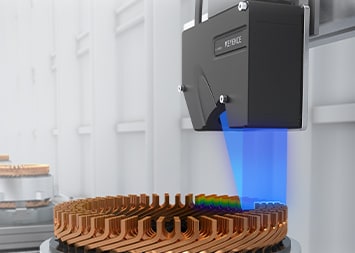

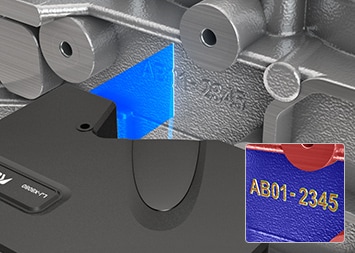

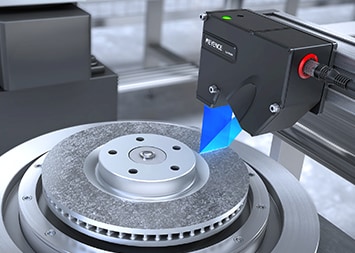

Automotive & Metals

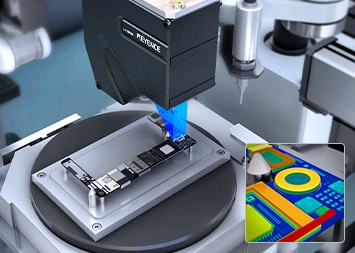

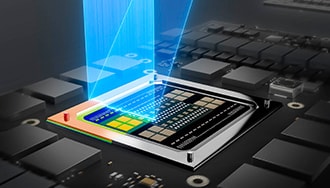

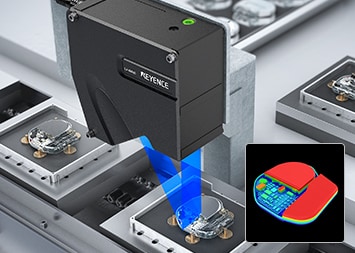

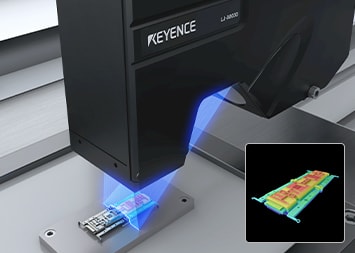

Batteries, Electronic Components, & Electrical Equipment

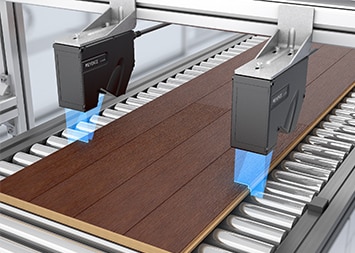

Building Materials

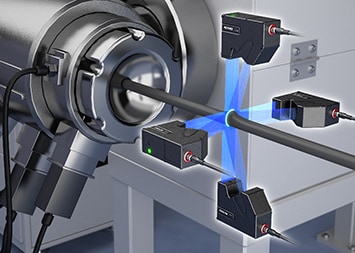

Plastics & Cables

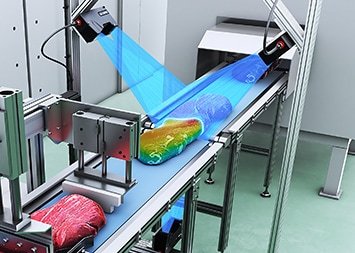

Food & Beverage

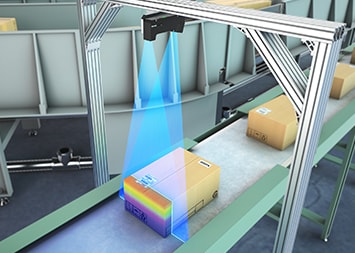

Logistics

The Addition of New Heads Enables High-Accuracy Support for Any Target and Any Range.

  • New LJ-X8030

    Measurement range (Maximum width)16 mm

    Repeatability (height)0.3 µm

  • New LJ-X8070

    Measurement range (Maximum width)36.5 mm

    Repeatability (height)0.3 µm

  • New LJ-X8100

    Measurement range (Maximum width)77 mm

    Repeatability (height)0.5 µm

  • LJ-X8020

    Measurement range (Maximum width)8 mm

    Repeatability (height)0.3 µm

  • LJ-X8060

    Measurement range (Maximum width)16 mm

    Repeatability (height)0.4 µm

  • LJ-X8080

    Measurement range (Maximum width)39 mm

    Repeatability (height)0.5 µm

  • LJ-X8200

    Measurement range (Maximum width)80 mm

    Repeatability (height)1 µm

  • LJ-X8300

    Measurement range (Maximum width)160 mm

    Repeatability (height)3 µm

  • LJ-X8400

    Measurement range (Maximum width)320 mm

    Repeatability (height)5 µm

  • LJ-X8900

    Measurement range (Maximum width)720 mm

    Repeatability (height)10 µm

Learn more in the catalogue
