Application SolutionsMeasuring Radius (R) / Inner Diameter

Finding The Right Solution for Radius Measurements

When looking for the best way to measure radius (R) / inner diameter, there are a number of important factors to consider, including the type of measurement system and the installation environment. Selecting equipment that doesn't adequately meet your needs can lead to insufficient precision and increased man-hours during production, so choosing the right equipment is important. This site is designed to help you discover the best way to perform radius/ inner diameter measurements with confidence.

How to Measure Radius (R) and Inner Diameter

  • STEP 1: Look at the methods outlined in each item to find the best measurement method.
  • STEP 2: Download the catalogue to learn more about the system.
  • STEP 3: Get in touch with your local measurement expert to have an on-site consultation about your application.

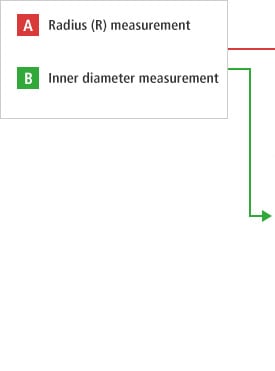

  1. A- Radius (R) measurement B- Inner diameter measurement

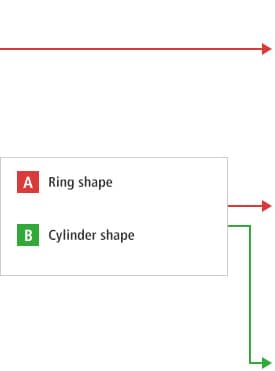

  2. B-A- Ring shape B-B- Cylinder shape
  3. Example Applications
    • A- Measurement 1 Radius measurement of drum seaming
    • B-A- Measurement 2 Inner diameter measurement of bearings
    • B-B- Measurement 3 Inner diameter measurement of cylinder blocks
