High Accuracy Image Dimension Measurement System

LM series

Catalogues View Catalogue

High Accuracy Image Dimension Measurement System LM series

±0.1 μm
Allowing Anyone to Take Highly Accurate Measurements

  • ±0.1 µm Repeatability
  • Anyone Can Use It
  • Fast Measurements

View Catalogue

LM series - High Accuracy Image Dimension Measurement System

A high-precision, optical gauge that allows operators to achieve dimensional measurement results to +/-0.1um. Utilising automatic focus, epi-illumination, and high precision optics, at the push of a button you can repeatably measure all 2D features, including height.

Features

Easier to Operate and with a Higher Degree of Accuracy

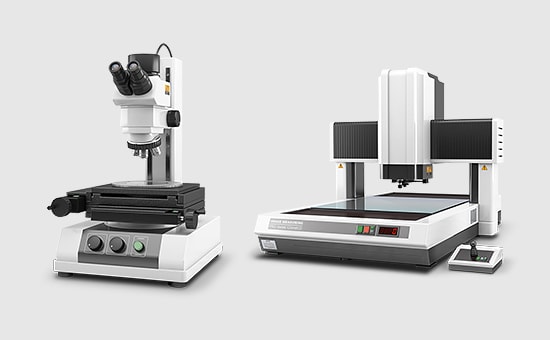

Operating conventional measuring microscopes and optical CMMs are challenging to master

  • Difficult to take accurate measurements
  • Difficult to use
  • Measurement is time-consuming

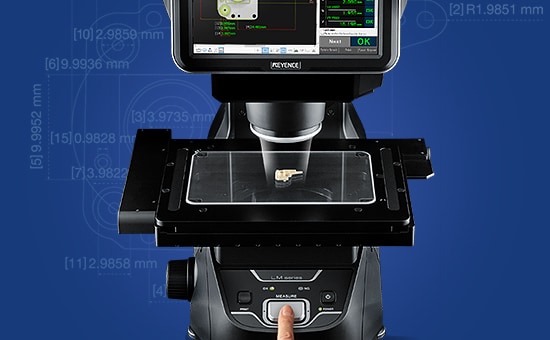

The LM Series solves all of these conventional problems, allowing anyone to easily and accurately operate it

  • ±0.1 μm high accuracy
  • Simple operation for any user
  • Measure instantly at the press of a button

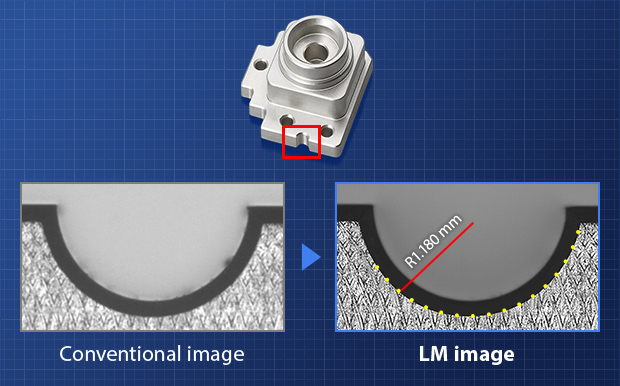

Metal cutting parts

Allows clear checks of surface edge cuts.
