Electrostatic Sensor

SK series

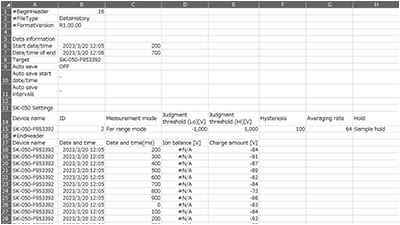

Effective visualisation of on-site static electricity Digitalise and Save Static Electricity Data Easily

View Catalogue

Features

Varied lineup

Choose between a convenient hand-held type that simplifies static electricity measurement, and a compact fixed type for constant in-line static electricity measurement.

Learn more in the catalogue

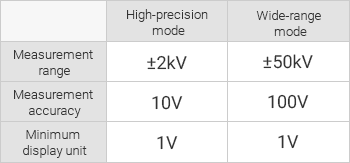

High-precision and wide-range measurements

KEYENCE can accommodate your needs from high-precision measurements with one-volt unit display resolution to measurements of highly charged objects, up to ±50 kV.

Learn more in the catalogue

Charge monitor function

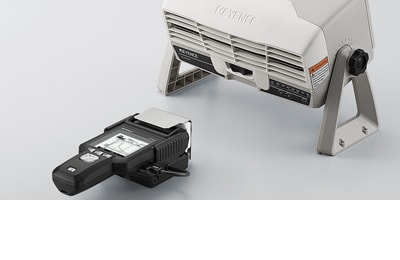

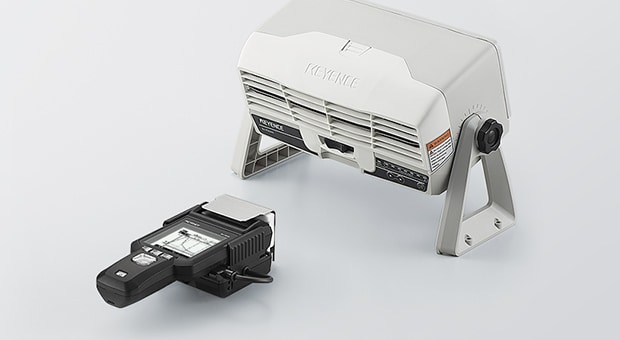

The SK-H050 features a charge monitor function that measures static elimination speed and ion balance, both of which indicate an ioniser’s static elimination capability. This allows users to conveniently measure their ioniser’s static elimination capability.
* An ioniser monitoring unit SK-H055, sold separately, is required.

Learn more in the catalogue

STATIC HUMIDITY + ELECTRICITY Simultaneous measurement

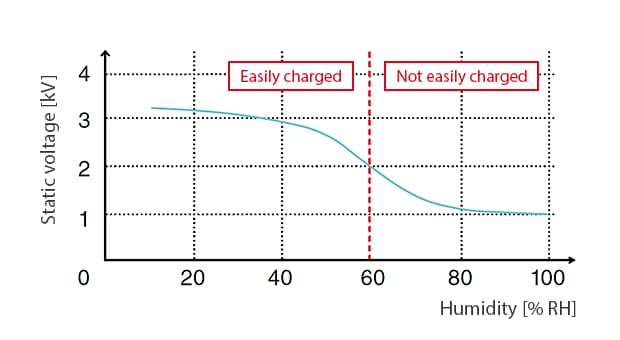

Relationship between humidity and static charge (typical example)

Measuring static electricity and humidity simultaneously makes it possible identify likely areas of static-related problems, paving the way for optimal static electricity countermeasures.

Learn more in the catalogue
