Static elimination in the coating process of bumpers
Static elimination of films
Static elimination of slitters
Defect prevention of adhesive painting on cardboard
In conventional models, the GND plate essential for ion generation is mounted externally. KEYENCE's SJ-H Series, however, is the first to adopt the I.R.G. (Insert Ring Ground) structure, which includes the plate inside the ioniser. By directing the generated ions to the target rather than the GND plate, loss is minimised and the number of ions applied to the target increases. This allows for high-speed static elimination five times faster than conventional models.

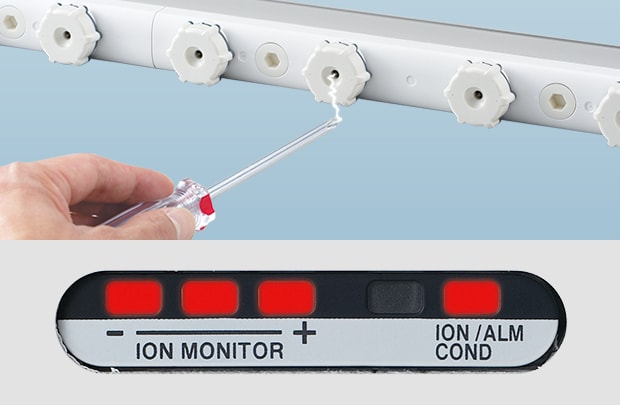

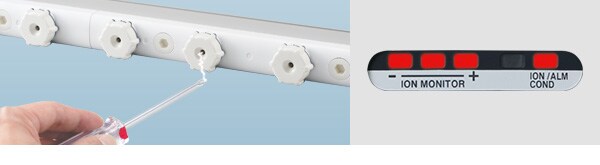

The SJ-H Series includes a self-diagnosis function that monitors the ion generation level. With the bar LED and alarm outputs, the ioniser alerts you when maintenance is required.
The SJ Series provides the self-diagnosis function that monitors three types of abnormalities. If an abnormality is detected, the LED indicators identify the error condition and an external output is activated. Centralised control of ionisers is enabled by monitoring the external output.
Monitors reduction in ion generation level due to dirt or wear of the electrode probe.
Monitors a high charge level that cannot provide a sufficient static elimination effect.
Monitors abnormal discharge or damage to the ioniser.
Small, easy-to-mount static eliminator that features visible feedback indicating whether a target has a static charge or not. The target area will light orange when static is present and green when absent. Easy installation and low-cost make this an ideal solution for troublesome areas.
Eliminate static electricity on a target area of 1000 mm at an installation distance of 200 to 1000 mm. With no need for an air supply, the SJ-F is suitable for desktop use.
Eliminate static electricity for a target area of 200 mm at an installation distance of up to 200 mm. The SJ-M Series boasts an ultra-compact ⌀10 mm static electricity elimination head suitable for installations within equipment or in narrow spaces.
The SK Series makes it easy to instantly check static electricity levels on products and areas throughout a production environment. Use the SK Series to also confirm whether static eliminators are effective and to check humidity and temperature levels.
